Throughbolts - Zinc | M12 x 140 | Box
£23.98
Skip to product information
Throughbolts - Zinc | M12 x 140 | Box
£23.98
Orders placed before 2pm on working days are normally dispatched the same working day.
Secure online checkout
Genuine TIMCO products
Delivery to eligible UK mainland addresses
Product code: 12140TB

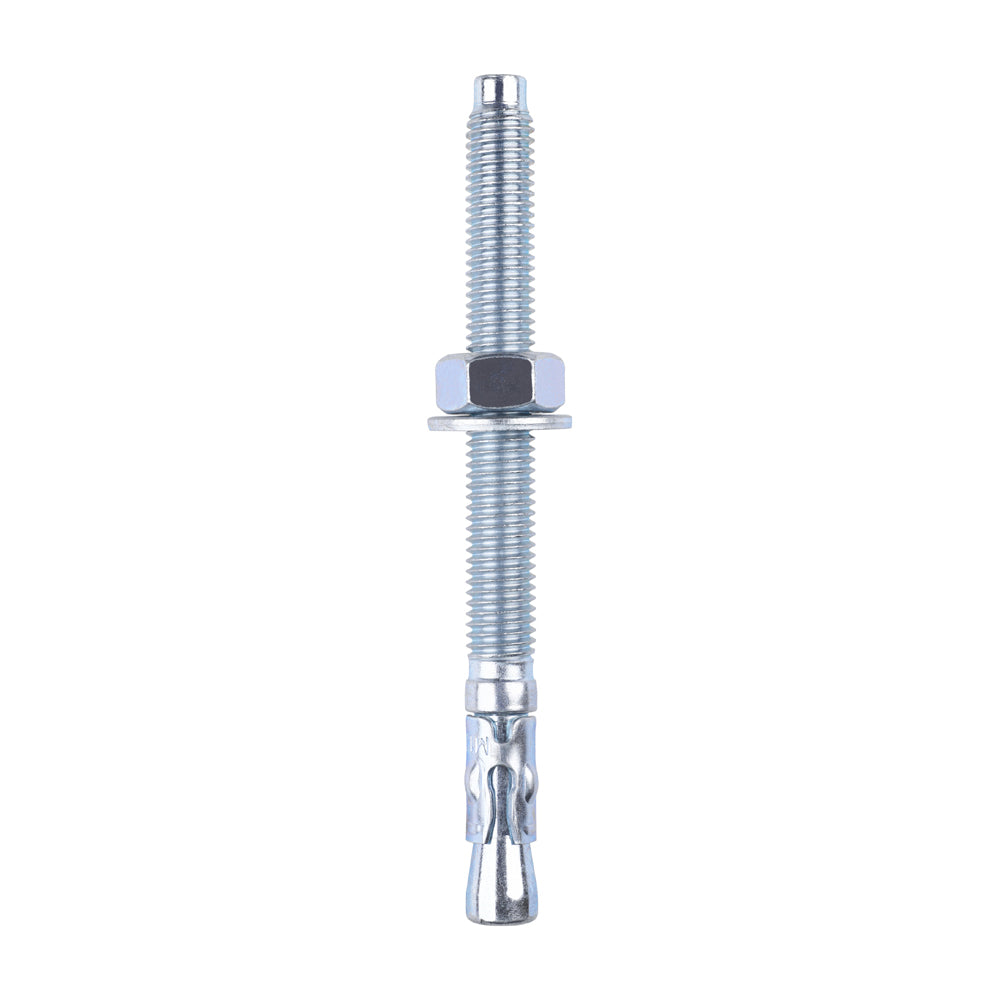

A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight. Size: M12 x 140. Supplied as box. TIMCO product code: 12140TB.
Key features
- Chamfered head design to prevent damage to thread during installation
- Zinc plated and passivated (3-5 microns)
- Manufactured from cold formed carbon steel (grade 5.8)
- Special expansion clip for rapid installation
Technical specification
- Thread Dia. mm: M12
- Length mm: 140
- Nut Socket Size mm: 19
- Material: Carbon Steel
- Finish: Zinc
- Drill Hole Dia. mm: 12
- Fixture Hole Diameter mm: 14
- Edge Distance mm: 75
- Max Fixture Thickness mm: 65
- Min Drill Hole Depth mm: 60
- Size: M12 x 140

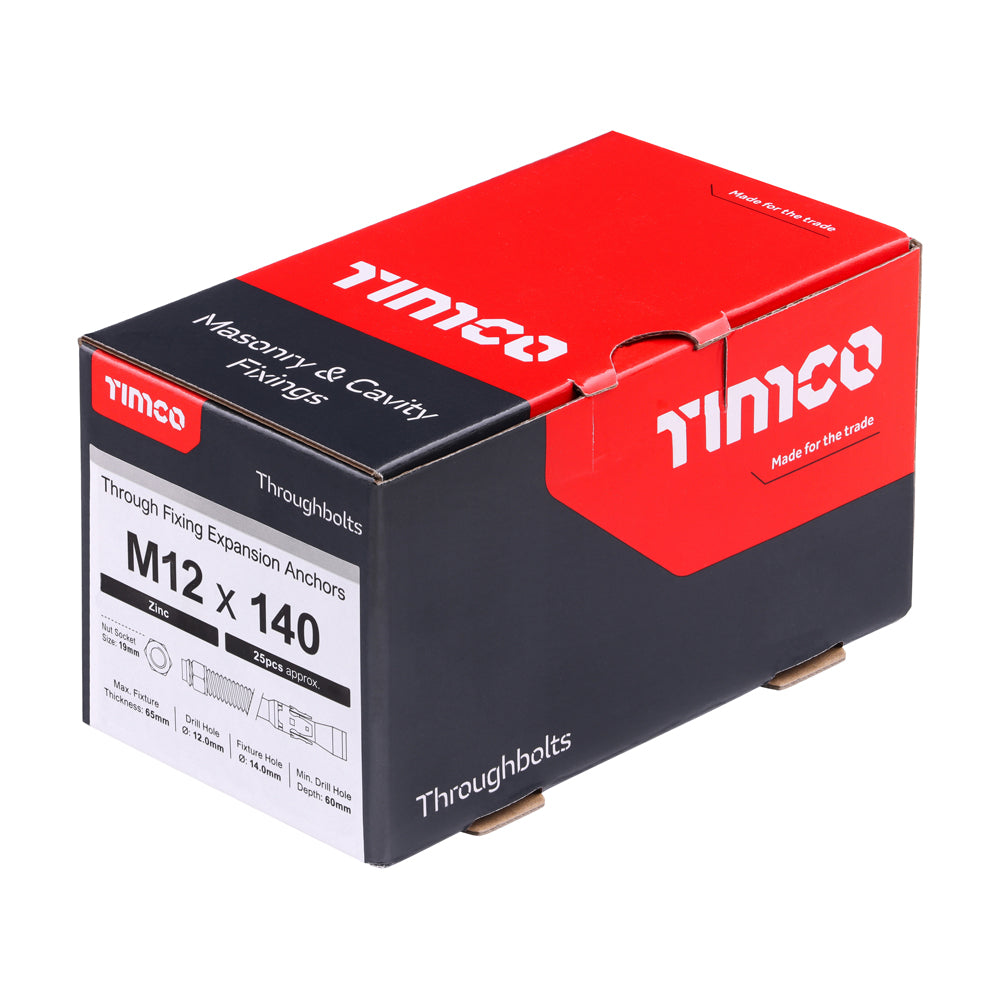

- Pack format: Box
- TIMCO product code: 12140TB
