Single Piece Masonry Hangers - Galvanised | 47 x 200
£4.68
Skip to product information
Single Piece Masonry Hangers - Galvanised | 47 x 200
£4.68
Orders placed before 2pm on working days are normally dispatched the same working day.
Secure online checkout
Genuine TIMCO products
Delivery to eligible UK mainland addresses
Product code: 47200MH

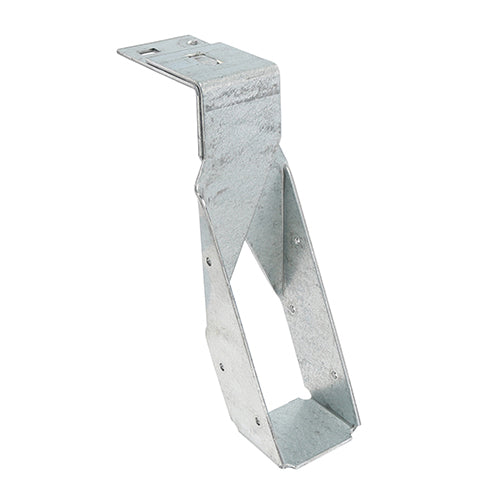

The TIMCO Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from pre-galvanised steel to give a high level of corrosion resistance. Size: 47 x 200. Supplied as each. TIMCO product code: 47200MH.
Key features
- Conforms to Eurocode 6 and service class 2
- Straight top flange
- No welds
- Hangers above 150mm are manufactured 10mm less to allow for notching and regularised timber
Technical specification
- Width mm: 47
- Height mm: 190
- Bearing mm: 75
- Thickness mm: 2.4
- Joist Size W x H mm: 47 x 200
- Material: Carbon Steel
- Finish: Galvanised
- Type: Single Piece
- Size: 47 x 200
- Pack format: Each
- TIMCO product code: 47200MH
