Shield Anchor Projecting Bolts - Yellow | M8:25P (M8 x 85)
£3.88
Skip to product information
Shield Anchor Projecting Bolts - Yellow | M8:25P (M8 x 85)
£3.88
Orders placed before 2pm on working days are normally dispatched the same working day.
Secure online checkout
Genuine TIMCO products
Delivery to eligible UK mainland addresses
Product code: 0825PSHP

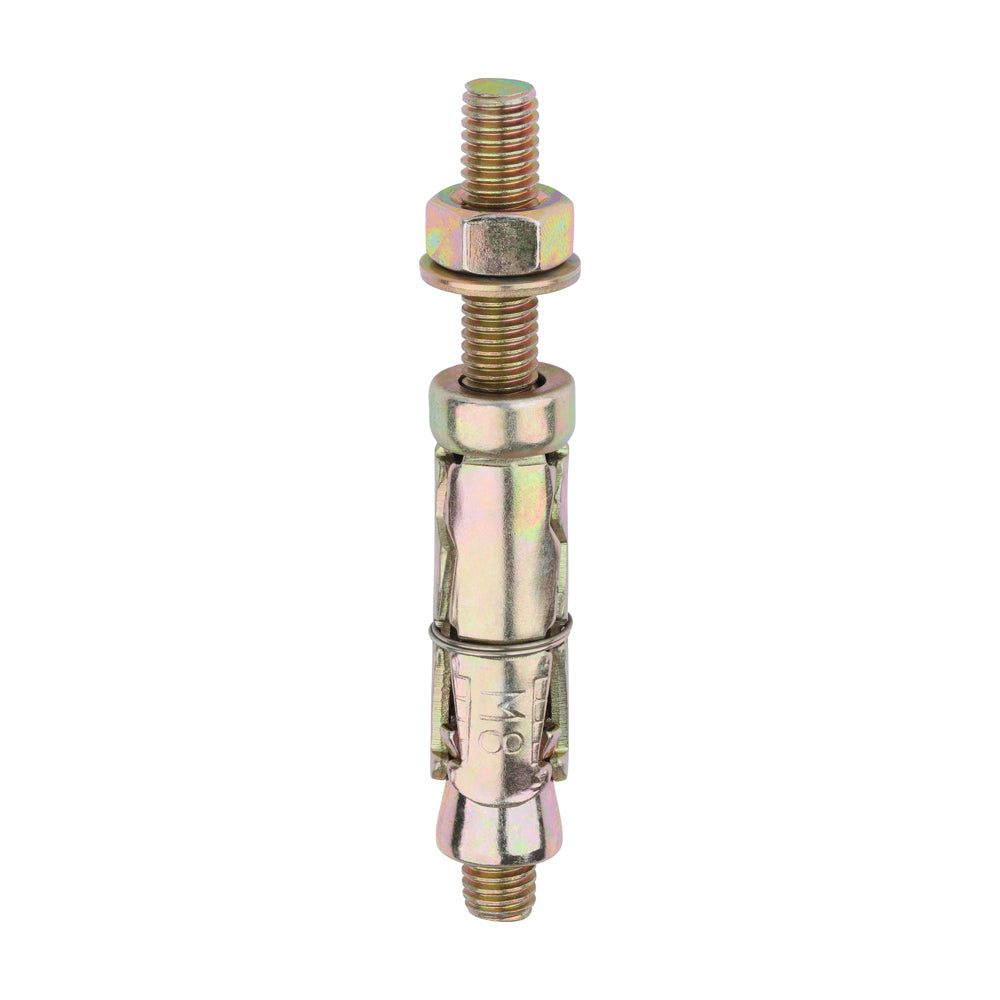

The projecting stud allows the fixture to be positioned into place and then fastened secure. Size: M8:25P (M8 x 85). Supplied as tin. TIMCO product code: 0825PSHP.
Key features
- Compatible with most types of metric threaded components
- A three segmented expansion anchor used in concrete, brick or stone
- Torque controlled
- Stud grade 5.8
Technical specification
- Thread Dia. mm: M8
- Shield Length mm: 50
- Material: Carbon Steel
- Finish: Zinc & Yellow
- Type: Projecting
- Drill Hole Dia. mm: 14
- Fixture Hole Diameter mm: 10
- Min Drill Hole Depth mm: 60
- Size: M8:25P (M8 x 85)

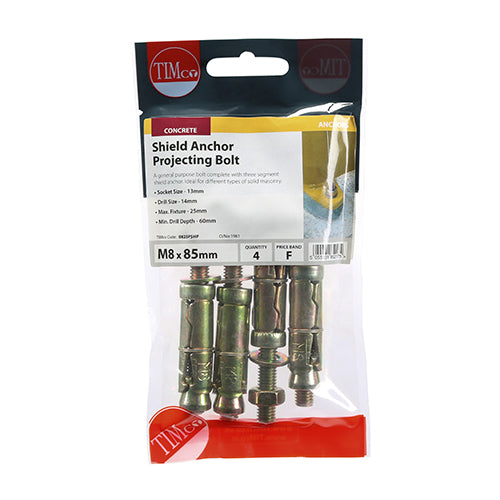

- Pack format: Tin
- TIMCO product code: 0825PSHP
