Shield Anchor - Loose Bolts - Yellow | M10:50L (M10 x 110)
£29.87
Skip to product information

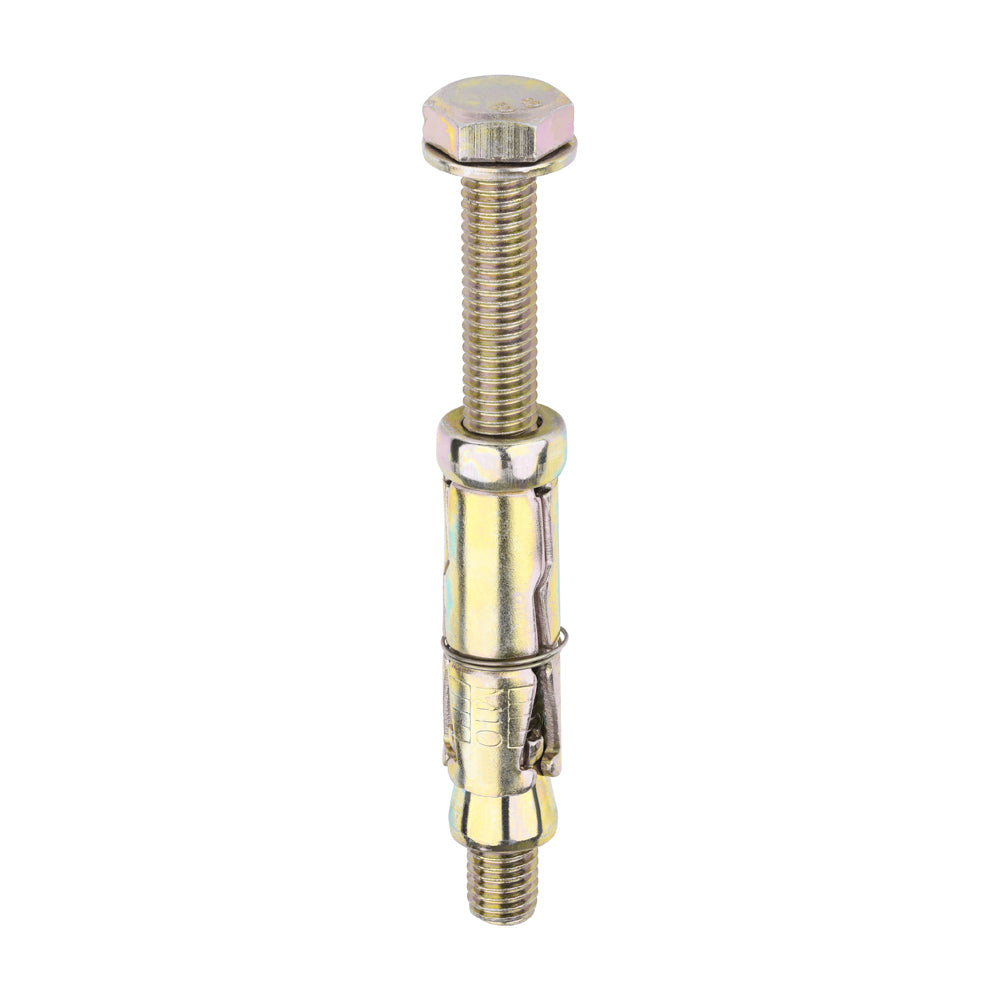

Shield Anchor - Loose Bolts - Yellow | M10:50L (M10 x 110)
£29.87
Orders placed before 2pm on working days are normally dispatched the same working day.
Secure online checkout
Genuine TIMCO products
Delivery to eligible UK mainland addresses
Product code: 1050LSH
Ideal for fixing through the fixture once the shield has been installed into substrate. Size: M10:50L (M10 x 110). Supplied as box. TIMCO product code: 1050LSH.
Key features
- Compatible with most types of metric threaded components
- A three segmented expansion anchor used in concrete, brick or stone
- Torque controlled
- Bolt grade 8.8
Technical specification
- Thread Dia. mm: M10
- Shield Length mm: 60
- Material: Carbon Steel
- Finish: Zinc & Yellow
- Type: Loose
- Drill Hole Dia. mm: 16
- Fixture Hole Diameter mm: 12
- Min Drill Hole Depth mm: 70
- Size: M10:50L (M10 x 110)
- Pack format: Box
- TIMCO product code: 1050LSH
Product documents
Delivery and returns
Orders placed before 2pm on working days are normally dispatched the same working day.
After dispatch, eligible UK mainland deliveries are normally expected within 1–2 business days.
