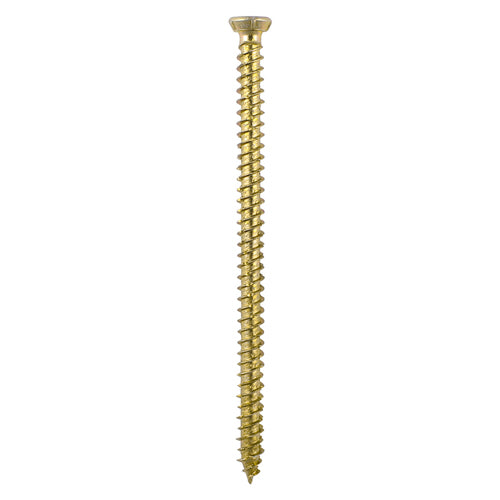

Concrete Screws - TX - Flat Countersunk - Yellow | 7.5 x 90
£12.49
Skip to product information
Concrete Screws - TX - Flat Countersunk - Yellow | 7.5 x 90
£12.49
Orders placed before 2pm on working days are normally dispatched the same working day.
Secure online checkout
Genuine TIMCO products
Delivery to eligible UK mainland addresses
Product code: 00090TCON
A rapid and effective light duty anchoring system for fixing into concrete, brick, stone, concrete block and wood. This through fixing provides a single solution and replaces traditional fixings such as nylon frame and hammer fixings. Size: 7.5 x 90. Supplied as box. TIMCO product code: 00090TCON.
Key features
- Designed to replace traditional masonry fixings
- TX30 TX Drive recess to reduce driver wear & prevent camming-out
- Serrated V-threads to achieve optimum insertion into all masonry types
- Zinc plated and yellow passivated for increased corrosion resistance
- High-Low thread on first 30mm to aid insertion and reduce torque
- Ideal for fitting windows and door frames
- Flat countersunk head with five locking ribs
- All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire
Technical specification
- Thread Dia. mm: 7.5
- Length mm: 90
- Diameter mm: 7.5
- Recess Type: TX Drive
- Head Type: Flat Countersunk with Ribs
- Finish: Zinc & Yellow
- Drill Hole Dia. mm: 6
- Fixture Hole Diameter mm: 8
- Max Fixture Thickness mm: 40
- Min Embedment Depth mm: 50
- Size: 7.5 x 90
- Pack format: Box
- TIMCO product code: 00090TCON
