Choosing the right wood screw diameter and length starts with the joint, not the screw box. There is no single size suitable for every timber fixing. The correct choice depends on the thickness of the components, the material receiving the thread, the available fixing depth and the demands placed on the finished joint.
A screw that is too short may not achieve enough engagement in sound timber. One that is too long can emerge through a finished face or enter an area containing concealed services. Increasing the diameter may improve a fixing in some applications, but it also increases driving effort and the risk of splitting the timber.

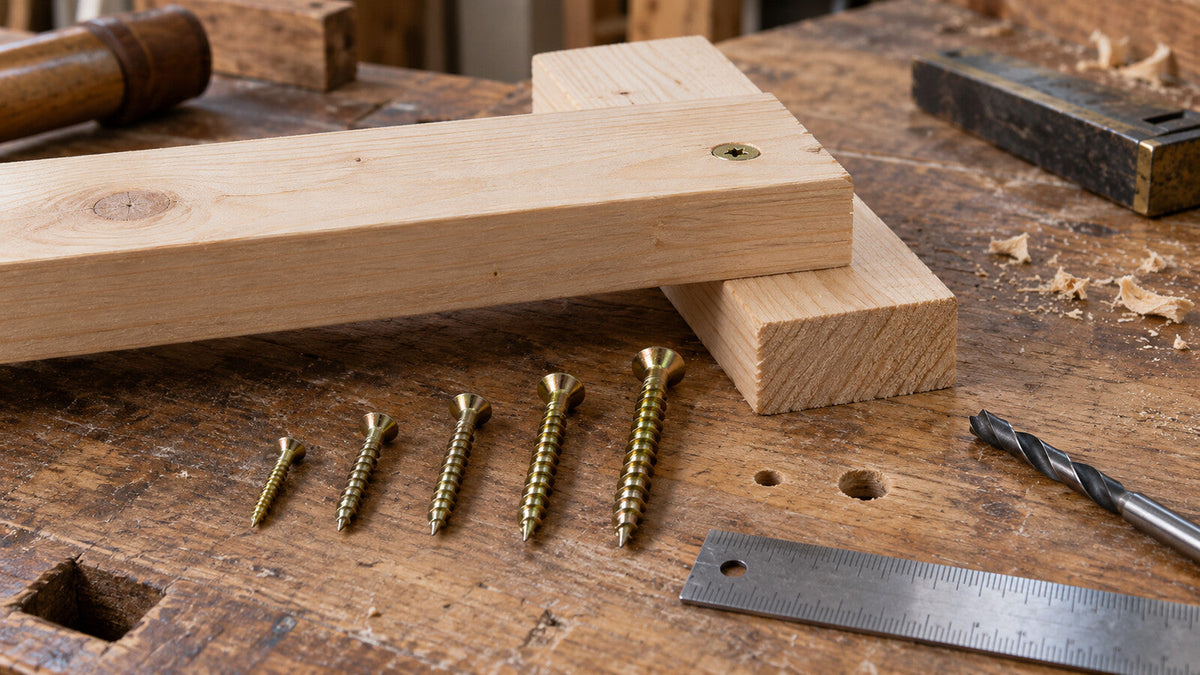

Understanding metric wood screw sizes
Wood screws sold in the UK are commonly identified by diameter and length in millimetres. A screw described as 4.0 × 40 mm has a nominal thread diameter of 4.0 mm and a nominal length of 40 mm.
The diameter is measured across the widest part of the thread, not across the head. Head diameter, core diameter, thread pitch and point design can all differ between screws carrying the same nominal size.
The way length is measured depends on the head profile:
- A countersunk screw is normally measured from the top of its head to the tip because the head is intended to sit flush with or below the surface.
- A screw with a head that remains above the surface is normally measured from the bearing face beneath the head to the tip.
- A raised countersunk head may use a different reference point, so check the product specification when space is limited.
Imperial screw gauges such as No. 6, No. 8 and No. 10 are still encountered in older fittings and traditional woodscrews. A larger gauge generally indicates a wider screw, but the imperial and metric systems are not directly interchangeable. Use the specified size for precision ironmongery or an existing threaded component rather than relying on an approximate conversion.
Start with the joint
Most timber screw joints involve two components:
- The top component is the board, batten, fitting or bracket being secured.
- The receiving material is the timber or board in which the thread must develop its hold.
The screw must pass through the first component and achieve useful engagement in the receiving material. It must also remain short enough to avoid breaking through the reverse face or entering an unsafe area.
Lay the proposed screw beside the assembled components before driving it. This simple check helps reveal whether the point will finish where expected. Include brackets, washers, packing pieces and any gap between the components in the calculation.
Avoid treating a familiar embedment ratio as a universal rule. Suitable engagement depends on the screw design, timber density, grain direction, joint arrangement and required performance. Manufacturer data or an engineered specification should take priority over general workshop rules.
Choosing wood screw diameter
Diameter affects the amount of material displaced as the screw is driven. It also influences the screw’s resistance to bending, shearing and withdrawal, although performance cannot be calculated from diameter alone.
A smaller diameter may be appropriate for light fittings, narrow mouldings and thinner material where splitting is a concern. A wider screw may be needed for a more demanding joint, but it requires enough sound material around it.
Consider the receiving material carefully:
- Softwood generally compresses more readily around a screw, although thin edges can still split.
- Dense hardwood usually creates greater driving resistance and may require a carefully sized pilot hole.
- Chipboard, MDF and similar boards can split or lose holding strength around their edges if an unsuitable screw is used.
- End-grain fixing generally provides less withdrawal resistance than fixing across the grain.
- Damaged or enlarged holes may not provide reliable support for a wider replacement screw without a proper repair.
Do not assign a load capacity to a screw solely because of its diameter. Actual performance depends on the exact screw, material, installation depth, edge distances, spacing and direction of loading.
Choosing wood screw length
The required length combines the depth passing through the top component with the engagement needed in the receiving material.
Before selecting a length, account for:
- the thickness of the top component
- the thickness of brackets, hinges or other fittings
- any washers or packing pieces
- the depth at which a countersunk head will finish
- the available depth of sound receiving material
- the screw’s actual thread length
- the clearance required behind the joint
For example, a screw fixing a 20 mm batten to deeper timber must use part of its total length passing through the batten. Only the remaining portion enters the receiving timber. If the backing timber is thin or has a visible reverse face, the safe length may be limited.
Do not count plaster, loose surface fibres, damaged board or a gap between components as useful timber engagement. Where dimensions are critical, measure the complete assembly and test the selected screw on matching offcuts.
Fully threaded and partially threaded screws
Thread coverage affects how a screw draws components together.
A fully threaded screw can grip both timber pieces at the same time. If a gap exists before the screw is tightened, the threads may hold the components apart. This is sometimes called jacking.
The risk can be managed by clamping the pieces, drilling an appropriate clearance hole through the top component or using a screw whose thread arrangement suits the joint.
A partially threaded screw has an unthreaded section beneath the head. When that section passes freely through the top component, the lower threads can pull the receiving material towards the screw head.
Do not assume thread coverage from the overall length. Two screws with the same diameter and length may have different thread lengths. Check the specification for the exact product.
For example, the TIMCO C2 Strong-Fix 4.0 × 40 mm screw has a stated thread length of 35 mm. The TIMCO Solo 5.0 × 90 mm woodscrew has a stated thread length of 70 mm. These figures show why the overall size alone does not describe the complete screw.
Pilot holes, clearance holes and countersinks
These three preparations perform different jobs:
- A pilot hole guides the screw through the receiving material while reducing the pressure placed on the surrounding timber.
- A clearance hole allows the screw to pass freely through the top component so the head can pull the joint closed.
- A countersink creates a recess for a countersunk head to sit flush without tearing or crushing the surface.
Pilot holes are particularly useful in dense hardwood, brittle boards, narrow sections and positions close to an edge or end. They may also reduce driving torque when fitting longer or wider screws.
The correct drill diameter depends on the screw’s core, thread design and the material being drilled. There is no pilot-hole chart that applies reliably to every woodscrew and timber combination. Follow the screw manufacturer’s guidance and test unfamiliar combinations on an offcut.
Sharp points, slash features and specialist cutting points can make starting easier and reduce splitting in suitable materials. They do not remove the need to assess the timber or prepare a pilot hole where conditions require one.
Choose the head and drive together
Countersunk heads are commonly used where the screw must finish flush with the timber. Pan, flange and washer-style heads provide different bearing surfaces and may be more suitable for brackets, sheet material or fittings that should not be countersunk.
The recess must match the driver bit exactly. Pozidriv, Phillips and hexalobular drive profiles are different systems, even when two bits appear similar at a glance.
Using the wrong or a worn bit can cause the driver to slip, damage the recess and prevent the head seating properly. Check both the drive type and bit size shown in the product information.
The TIMCO Classic Multi-Purpose 4.0 × 40 mm screw, for example, has a double countersunk head and requires a PZ2 driver bit. This is a product-specific detail rather than a rule for every 4.0 mm woodscrew.
Match the screw to its environment
Diameter and length do not determine whether a screw is suitable for indoor, damp or exterior use. The base material and protective finish must also match the environment and the timber being fixed.
Standard zinc and yellow finishes are commonly associated with clean, dry internal conditions. Do not assume that a yellow, gold, silver or dark coating is suitable outdoors simply because it appears corrosion resistant.
Exterior applications may require a specified exterior coating or stainless steel grade. Treated timber, corrosive wood species, coastal exposure, swimming-pool environments and contact with dissimilar metals can introduce additional corrosion risks.
Check the manufacturer’s stated corrosion rating, substrates and environmental limitations for the exact screw. Selecting a longer indoor woodscrew does not make it an exterior fixing.
Common wood screw selection mistakes
Problems often begin with one of these avoidable errors:
- Choosing by length while ignoring diameter and material.
- Forgetting that part of the length is used passing through the top component.
- Allowing the point to emerge through a finished surface.
- Assuming screws with the same nominal size have identical thread lengths.
- Using a Phillips bit in a Pozidriv recess or choosing the wrong bit size.
- Driving close to an edge without considering a pilot hole.
- Using an indoor finish in a damp or exterior location.
- Using screws to force badly fitted or severely distorted components together.
- Treating a general-purpose woodscrew as a structural or specialist fixing.
- Failing to check for pipes, cables and other concealed services.
A dry assembly, physical length check and trial fixing can prevent most of these problems before the finished work is marked or damaged.
Structural and safety-critical connections
This guidance is intended for ordinary joinery, cabinetry, fitting-out and general timber work. It is not a structural fixing specification.
Load-bearing construction, roof and floor assemblies, guarding, safety barriers, overhead installations and engineered timber connections require specified fasteners. Screw type, diameter, length, embedment, edge distance, spacing and installation method must follow the design documents, applicable approvals and manufacturer instructions.
Do not replace a specified structural screw, connector fixing or bolt with a general-purpose woodscrew merely because its dimensions appear similar.
A practical selection check
Before driving the first screw:
- Measure the top component and the available receiving depth.
- Confirm that the point cannot enter a finished face or concealed service.
- Choose a diameter appropriate for the material and demands of the joint.
- Check the overall length and the actual thread length.
- Confirm the head style and driver-bit requirement.
- Decide whether a pilot hole, clearance hole or countersink is needed.
- Verify that the material and finish suit the environment.
- Test the fixing on matching material where practical.
The right woodscrew is one that fits the complete joint, clamps the components properly and remains suitable for the conditions in which it will be used. Taking a few moments to check diameter, length, thread coverage and finish is more dependable than selecting a familiar screw by sight.
