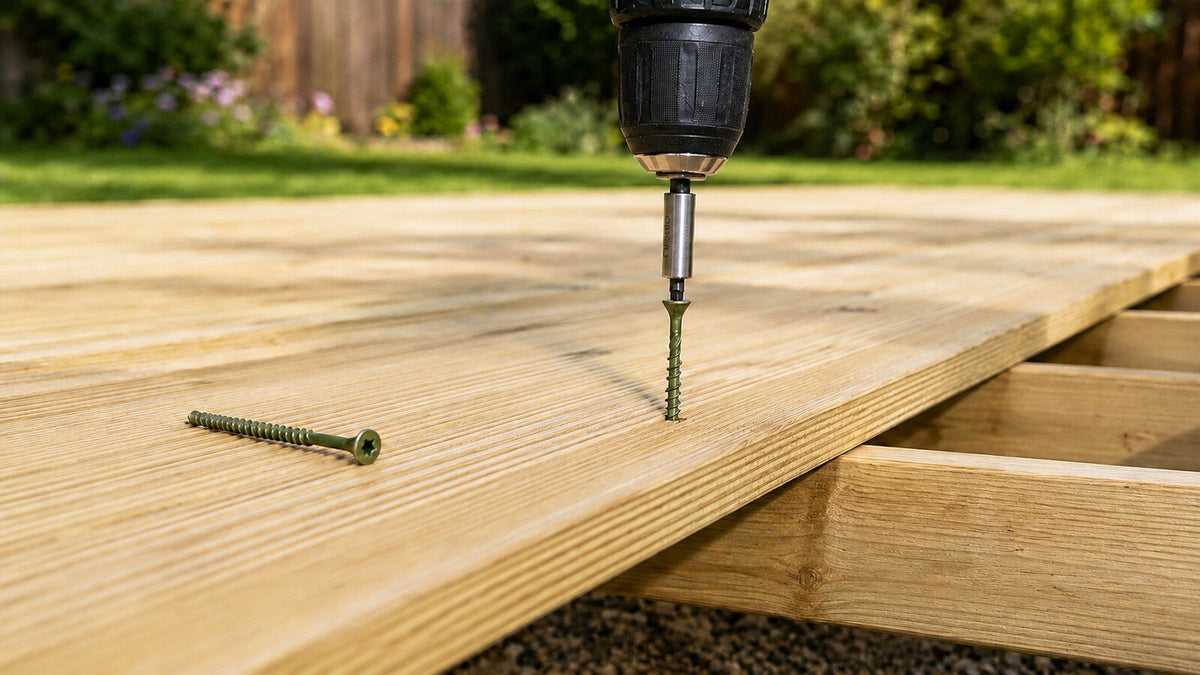

For timber decking boards, choose purpose-made exterior decking screws with corrosion resistance suited to the timber and location. The screw must be long enough to pass through the board and achieve suitable purchase in the joist, while its head should finish flush with the board surface.
High-performance coated steel screws are suitable for many ordinary outdoor timber projects. Austenitic stainless-steel screws should be considered where the timber or environment presents a greater corrosion risk. Always follow the decking-board and fixing manufacturers’ instructions where they specify a particular material, size or fixing method.
Start with purpose-made exterior decking screws
Decking screws are designed to secure timber boards to timber joists outdoors. Depending on the product, they may include features such as corrosion-resistant coatings, countersunk heads, under-head ribs and points intended to reduce the risk of splitting.
Do not substitute plasterboard screws, ordinary interior wood screws or standard uncoated steel screws. These are not intended for continuous outdoor exposure.
The Timber Decking and Cladding Association identifies austenitic stainless steel and carbon steel with a high-performance protective coating as suitable materials for outdoor deck fixings. Electroplated and standard uncoated ferrous metals are listed as unsuitable.
Choose the material for the timber and environment
The correct screw material depends on the timber, its treatment and the conditions in which the deck will be used.
Coated steel decking screws
Coated decking screws are a practical option for many pressure-treated softwood decks, provided the product is intended for the application.
One verified example is the TIMCO C2 Deck-Fix 4.5 × 75 mm screw. It is manufactured from hardened steel with an exterior green organic coating and has:
- A TX20 drive
- A countersunk head with ribs
- A Twin-Cut point
- A stated 1,000-hour salt-spray test
- A box quantity of 250
The salt-spray figure is a product test result. It should not be treated as a guaranteed service life or proof that the screw is suitable for every outdoor environment.
Stainless-steel decking screws
TIMCO also supplies A2-304 stainless-steel decking screws intended for exterior decking applications and situations where the environment or base material presents a corrosion risk.
TIMCO’s product information specifically identifies Green Oak as an example of timber with inherent corrosive characteristics. Other timber species, treatments and environments may require different fixing specifications.
Do not assume that every stainless-steel grade is suitable for every coastal, marine or chemically exposed location. Where exposure is severe, check the decking supplier’s instructions and obtain suitable technical advice before choosing the fixing grade.
Choose the correct screw length
A decking screw must pass through the full thickness of the board and achieve adequate purchase in the supporting joist.
TDCA guidance states that deck-board fixings should generally be between two and three times the board thickness unless the fixing manufacturer can substantiate a different specification.
Treat that as a selection guide rather than an automatic answer. Before ordering:
- Measure the actual board thickness.
- Check the depth and condition of the joist.
- Consult the decking-board installation instructions.
- Check the intended application of the screw.
- Make sure the point will not protrude somewhere it could create a hazard.
Do not copy a screw size from another deck without confirming that the board and supporting structure are comparable.
Screw diameter should also be selected according to the fixing and decking manufacturers’ guidance. A larger diameter is not automatically better, particularly with narrow, dense or split-prone boards.
Check the head and drive type
Countersunk heads are commonly used for face-fixed timber decking because they can finish flush with the board surface. Some decking screws have ribs beneath the head to assist countersinking.
Drive the screw only until its head is flush with the board. A deeply recessed fixing can create an area where water collects. A proud fixing may create a trip or snagging point.
Use the exact driver bit required by the screw. Decking products do not all use the same drive system. Verified TIMCO ranges include:
- TX20 drive on the coated C2 Deck-Fix screw
- PZ2 drive on A2 stainless-steel decking screws
- TX15 drive on a reduced cylinder-head stainless-steel Deck-Fix screw
Check the product specification rather than assuming that every decking screw uses TX or PZ.
Match the fixing method to the board
Pressure-treated softwood
Purpose-made coated or stainless-steel decking screws may be suitable for pressure-treated softwood, subject to the screw and board manufacturers’ instructions.
Some screw designs can be driven into suitable softwood without a pilot hole. However, pre-drilling near board ends can reduce the risk of splitting.
Hardwood and dense timber
TDCA recommends screws for hardwood and dense softwood species and advises pre-drilling and countersinking.
The screw material must also be compatible with the timber. Do not assume that a coated steel screw suitable for ordinary treated softwood is automatically appropriate for dense or naturally corrosive hardwood.
Composite and grooved decking
Composite, PVC and grooved decking products frequently use proprietary clips or specialised screws.
Do not use an ordinary timber decking screw simply because the board is installed outdoors. Follow the board manufacturer’s installation instructions and use only an approved fixing system.
TIMCO produces a reduced cylinder-head A2 stainless-steel Deck-Fix screw described in its catalogue as suitable for composite decking, but the composite-board manufacturer’s requirements must still take priority.
Avoid common fixing mistakes
Before beginning the installation:
- Do not use interior or uncoated steel screws outdoors.
- Do not mix incompatible metals at the same fixing point.
- Do not assume all stainless-steel grades have the same corrosion resistance.
- Do not over-drive screw heads beneath the board surface.
- Pre-drill where required by the timber or fixing manufacturer.
- Follow the board supplier’s instructions for spacing and fixing position.
- Investigate distorted boards or uneven joists rather than trying to force them together with additional screws.
- Keep screw lines consistent for a neat finish and easier future maintenance.
Decking screws are not structural-design advice
Deck-board screws secure the walking boards to the supporting joists. They should not automatically be used for posts, ledger boards, joist-to-beam connections, stairs or other structural joints.
Those connections may require structural timber screws, bolts, connectors or another specified fixing system.
Raised decks, balconies, public walkways and other safety-critical structures may require building-control involvement, competent structural design or specialist installation advice. Choosing a suitable deck-board screw does not confirm that the supporting structure is safe.
A practical buying check
Before ordering decking screws, confirm:
- Board material
- Board thickness
- Joist material and depth
- Timber treatment
- Environmental exposure
- Required screw material
- Head and drive type
- Manufacturer-approved fixing method
- Pack quantity required
Selecting the fixing system before installation begins helps avoid corrosion staining, split boards, damaged screw heads and unnecessary remedial work.
