Choosing between Squire padlock types starts with the item being secured. The padlock body, shackle and locking mechanism must fit the existing hasp, staple, chain or bracket correctly. A lock that is too large may not fit, while one that is too small can leave unnecessary movement or exposed shackle.
For trade and property-maintenance work, measure the locking point first. Then consider the expected weather exposure, the level of physical protection required and how access will be managed. An indoor tool cupboard has different requirements from an exposed side gate, plant store or shared service enclosure.

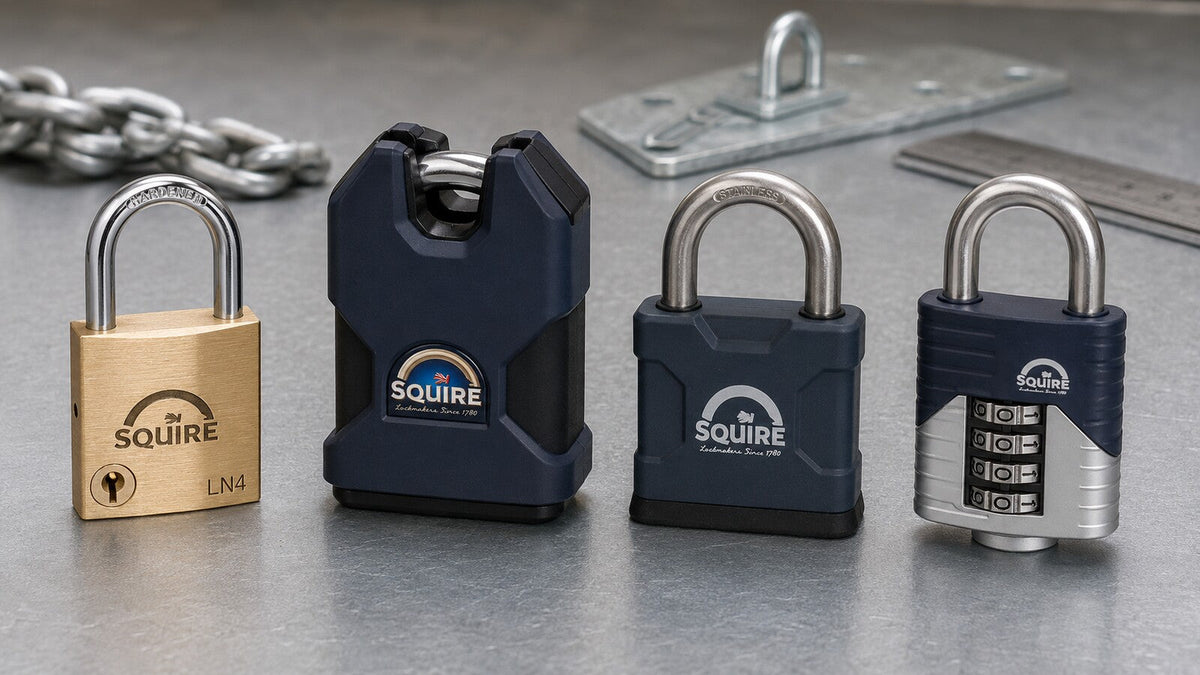

The main Squire padlock types
Squire manufactures padlocks with different body materials, shackle arrangements and locking mechanisms. These features affect where the lock can fit, how it responds to its environment and how access can be controlled.
Solid brass padlocks
Solid brass padlocks are a familiar general-purpose option for lockers, toolboxes, cupboards, sheds and gates. Brass naturally resists atmospheric corrosion, although the complete lock also includes a shackle, cylinder and internal components that must suit the intended environment.
Many keyed brass padlocks use a pin-tumbler mechanism and an open shackle. The Squire Premium Brass Lion Padlock LN4 is one example of a 40 mm solid-brass open-shackle padlock intended for indoor and outdoor use.
Brass construction does not automatically determine the security level. Check the complete product specification, including the shackle material, locking arrangement, dimensions and manufacturer’s security rating.
For exposed commercial stores or locations where cutting and forced attack are greater concerns, a more protected hardened-steel design may be appropriate.
Hardened-steel and protected-body padlocks
Higher-security padlocks can use hardened-steel bodies, thicker shackles and protective covers. These models are generally considered for commercial gates, storage compounds, outbuildings and other locations where greater physical protection is required.
The Squire Stronghold SS50CS closed-shackle padlock has a 50 mm hardened-steel body and a 10 mm hardened boron-alloy-steel shackle. Its raised body shoulders protect much of the shackle and reduce the amount accessible to cutting tools.
Squire currently lists model-specific independent approvals and security classifications for the SS50CS. These should not be applied to other Squire padlocks merely because they share the Stronghold name or have a similar appearance.
Where an insurer, customer or contract specifies a particular standard, check the current certification for the exact lock and the requirements for the complete installation before ordering.
Weather-resistant padlocks
An external padlock may be exposed to rain, condensation, road dirt, salt-laden air, dust or building residue. Weather-resistant models use suitable materials and protective body features to provide additional resistance to these conditions.
The Squire All Terrain ATL42S padlock combines a solid-brass lock body, stainless-steel shackle and protective body cover. Squire describes it as highly weather and rust resistant and suitable for exposed applications including sheds, vans, farms and boats.
Weather resistance should not be interpreted as permission to leave a lock sitting in standing water or contamination indefinitely. Position the fitting so water can drain where possible, keep the lock reasonably clean and follow the manufacturer’s maintenance guidance.
Combination padlocks
Combination padlocks remove the need to issue and collect physical keys. They can be useful for shared lockers, cupboards, gates and access points where the consequences of a circulated code are manageable.
The Squire Vulcan Combi 40 uses four number wheels, provides up to 10,000 possible combinations and can be recoded. Those features apply to that specific model and should not be assumed for every combination padlock.
Access still needs managing. A code can be shared beyond the intended users, so it should be changed when contractors, tenants or staff no longer require entry. Check that the selected model can be recoded before putting it into service.
For premises that require an auditable key handover or individual access control, a keyed system may be easier to manage than a shared combination.
Open-shackle and closed-shackle padlocks
The shackle arrangement affects both fitting flexibility and physical protection.
An open-shackle padlock leaves most of the shackle visible above the body. The additional clearance can make it easier to fit through chain links, offset hasps and awkward staples. The disadvantage is that more of the shackle remains accessible.
A closed-shackle or shrouded-shackle padlock encloses more of the shackle within raised sections of the body. This reduces the area available around the shackle, but it also leaves less room for the hasp, chain or staple.
A closed-shackle lock cannot be selected by body width alone. Its internal opening must accommodate the fitting without being forced or left partly engaged.
Keyed differently, keyed alike and master-keyed locks
Keying choice becomes important when several locks are used across a workshop, managed property, estate or group of storage units.
Keyed differently
Each padlock operates with its own key. This limits the effect of a lost key to one lock but can result in maintenance teams carrying a large number of keys.
Keyed alike
Two or more compatible locks operate using the same key. This can simplify routine access, but losing one key may affect every lock in that keyed-alike group.
Master keyed
Individual locks retain their own user keys, while an authorised master key can operate several locks within the system. This can be useful for managed facilities where local and supervisory access must be separated.
Keyed-alike and master-keyed options are available only within compatible product families. Confirm availability with the supplier, Squire or an authorised locksmith before planning a complete system.
Keep a controlled record of issued keys and decide who can authorise replacements. Convenience should not come at the expense of knowing who can access each location.
Measure the locking point before ordering
Body width is only one part of the fit. Four measurements normally need checking:
-
Shackle diameter: The shackle must pass through the hasp, staple, chain link or locking bracket without being forced.
-
Vertical shackle clearance: There must be enough internal height for the fitting to sit inside the closed shackle.
-
Horizontal shackle clearance: The opening between the shackle legs must accommodate the width of the staple or chain link.
-
Body width and depth: The body must have room to move into position without fouling a gate post, wall, guard or surrounding hardware.
Close the hasp before measuring it. Paint, galvanising, weld beads, distortion and worn alignment can all reduce the usable opening.
For chain-and-padlock arrangements, confirm that the end links accept the shackle. Avoid assuming that a nominal chain size guarantees compatibility with a particular lock.
Consider the complete security arrangement
A padlock works as part of a wider installation. A highly protected padlock attached to a lightweight hasp with accessible fixings can simply move the vulnerable point elsewhere.
Check the condition and suitability of:
- the hasp and staple;
- the chain and its end links;
- the gate, door or shutter;
- hinges and hinge fixings;
- screws, bolts and other mounting hardware; and
- the surrounding timber, masonry or metalwork.
The fitting should close naturally without using the padlock to pull it into alignment. If a gate has dropped, a staple has bent or a hasp is loose, repair that problem before choosing the replacement lock.
For high-value, insurance-sensitive or safety-critical premises, check the insurer’s requirements and seek advice from an authorised locksmith, security professional or the manufacturer where appropriate.
Squire padlock buying checklist
Before ordering, confirm:
- the shackle diameter;
- the horizontal and vertical shackle clearance;
- the available space around the lock body;
- whether the fitting suits an open or closed shackle;
- the expected indoor or outdoor exposure;
- whether access requires separate keys, keyed alike, master keying or a combination;
- whether current independent certification is required; and
- whether the hasp, chain, hinges and fixings provide suitable protection.
Choosing the largest padlock on the shelf is not a reliable security plan. A better result comes from measuring the fitting, assessing the complete installation and selecting a lock whose dimensions, construction and access method suit the actual job.
