The right plasterboard screw is normally determined by the framing behind the board, not by the board alone. Among the main plasterboard screw types, coarse-thread screws are used for suitable timber framing, fine-thread sharp-point screws suit specified light-gauge metal systems, and self-drilling screws are available for thicker metal track within the product's stated drilling capacity.
Board thickness, number of layers and the lining-system specification then determine the required length and fixing pattern. Checking those details before ordering avoids poor engagement, damaged board paper and boxes of screws that do not suit the construction.
Start with the substrate and lining system
Before choosing a length or pack quantity, establish what the plasterboard will be fixed to. The supporting material may be timber studs or battens, light-gauge metal studs and channels, or a thicker metal track that requires a self-drilling point.
Also record:
- the thickness and type of each board layer;
- whether the lining is single layer, multilayer or an overboarding application;
- the manufacturer's specified screw type, length and fixing centres;
- the room environment and required corrosion performance; and
- whether loose or collated screws match the intended tool and scale of work.
Fire, acoustic, impact-resistant and moisture-control constructions should be treated as complete systems. Their tested performance can depend on the specified boards, framing, fixings, layer sequence, joints and fixing pattern. General buying guidance should not override the system documentation.

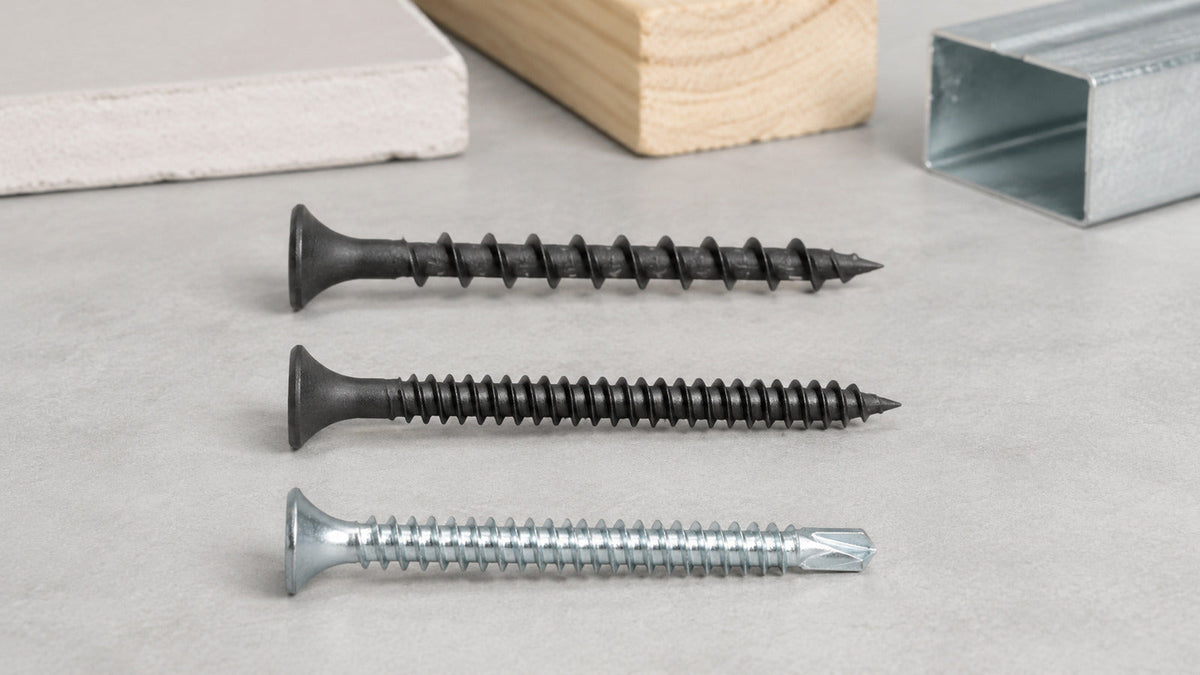

Coarse-thread plasterboard screws for timber
Coarse-thread drywall screws have deep, widely spaced threads intended to engage timber. They are the normal category to check when fixing plasterboard to suitable timber studs, joists, noggins or battens.
The TIMCO 00025DRYC coarse-thread drywall screw is a verified example. It measures 3.5 x 25 mm and has a bugle head, PH2 recess, 25-degree sharp point and dark grey phosphate finish. TIMCO describes it for securing plasterboard to timber studwork and supplies it in a box of 1,000.
The timber still needs to be sound and capable of accepting the fixing. A different screw cannot compensate for split, decayed or inadequately supported framing. Check that the screw will enter a substantial framing member rather than thin cladding or an unsupported board edge.
Do not select a coarse-thread screw for metal framing simply because its length looks suitable. Start with the metal thickness and the fixing stated for that framing system.
Fine-thread screws for light-gauge metal track
Fine-thread drywall screws have closely spaced threads designed to engage suitable thin metal framing. The point remains sharp rather than forming its own drilled hole, so the manufacturer's maximum metal thickness matters.
The TIMCO 00025DRY fine-thread drywall screw measures 3.5 x 25 mm. It has a 25-degree sharp point, PH2 bugle head, dark grey phosphate finish and fine 60-degree twin-thread. TIMCO states that it is for plasterboard fixed to drywall and ceiling-track systems with a maximum thickness of 0.6 mm.
That 0.6 mm figure belongs to this product range. It should not be carried across to every sharp-point drywall screw or metal-stud system. If the track is thicker, or the framing manufacturer specifies a different fixing, use the stated system component instead.
Self-drilling drywall screws for thicker metal
A self-drilling drywall screw has a formed drill point that cuts through suitable metal and allows its thread to engage. It is different from a fine-thread sharp-point screw, even when both products have the same nominal diameter and length.
The TIMCO 00025PSDD self-drilling drywall screw measures 3.5 x 25 mm and has a PH2 bugle head, self-tapping thread, No.2 self-drilling point and zinc finish. TIMCO states that it can aid fixing plasterboard to wall and ceiling-track systems with a maximum thickness of 2.0 mm.
The published data provides a maximum of 2.0 mm for this SKU. It does not state that every metal thickness below that figure should automatically use this product. Match the screw to the framing or lining-system specification, particularly where the construction is fire-rated, acoustic or otherwise performance-tested.
This drywall screw is not intended for heavy structural steelwork. A self-drilling point does not turn it into a general metal-construction fastener.
Loose and collated drywall screws
Loose screws suit smaller boarding jobs, repairs and positions where an auto-feed tool cannot reach comfortably. They can be driven with an appropriate screwgun or driver arrangement, provided the correct bit and depth control are used.
Collated screws are supplied in strips for compatible auto-feed equipment. They can reduce reloading time on repetitive wall and ceiling work, but collation does not change the substrate rule. The thread, point and length must still suit the framing and board build-up.
The TIMCO 00035COLDYS collated coarse-thread drywall screw is a 3.5 x 35 mm black-phosphate screw for timber studwork. It has a 25-degree sharp point, PH2 bugle head and coarse thread, and is supplied in a box of 1,000.
TIMCO describes its collated strips as compatible with leading power-tool brands, but the tool, attachment, strip format and accepted screw-length range should still be checked before purchase. A strip that appears to fit is not proof that it will feed correctly.
Choosing the correct screw length
Length should be selected from the total lining build-up and the engagement required by the board or system manufacturer. A single layer, two board layers and an overboarded ceiling are different constructions.
For multilayer work, account for every layer the final screw passes through. Do not choose the second-layer screw using only the thickness of the face board. The manufacturer's schedule may also use different fixing lengths or patterns for the first and outer layers.
Overboarding requires additional investigation. Establish the thickness and condition of the existing lining, locate the actual joists or studs, and account for any voids. A long screw that passes through the boards but misses the framing provides no useful hold and may reach concealed services.
Avoid turning a general rule of thumb into a project specification. Board and system manufacturers publish fixing schedules for particular walls, ceilings and encasements, and those schedules can vary by board type, framing and performance requirement.
Bugle heads, recesses and driving depth
A bugle head has a curved underside intended to reduce the likelihood of damaging the board surface as the screw is seated. It does not make overdriving harmless.
The head should be set as required by the lining-system instructions, normally without standing proud and without breaking the paper face or gypsum core. If the paper is torn, do not assume the fixing is still acceptable. Follow the board manufacturer's remedial method and place any replacement fixing at the specified position.
The selected TIMCO examples use a Phillips No.2 recess. Use a sound PH2 bit rather than a similar-looking Pozidriv bit. A worn or incorrect bit encourages cam-out and can damage both the recess and the board surface.
Set and test the screwgun depth control before beginning a full run. Recheck it when the board, framing or working angle changes, and keep the tool square to the fixing.
Finish and room environment
The dark grey and black phosphate products selected above carry TIMCO corrosion rating 1, described for clean, dry and low-humidity environments. The zinc self-drilling example also carries corrosion rating 1. A zinc appearance alone should not be read as approval for damp, external or aggressive conditions.
Moisture-resistant plasterboard does not automatically make an ordinary drywall screw suitable for wet or exposed use. Bathrooms, wetrooms, unheated buildings, exterior soffits and cement-board systems may require different boards, fixings and corrosion protection. Check the complete system and the environmental rating of the exact fixing.
Plasterboard screws are not structural fixings
Drywall screws are intended to retain suitable boards against specified framing. They should not be substituted for structural timber screws, general metal-construction screws or load-rated fixings for mounted equipment.
Cupboards, radiators, basins, grab rails, television brackets and other significant loads need a fixing strategy based on the load and supporting construction. Depending on the application, that may involve timber support, suitable framing, a solid substrate or a tested cavity fixing. The plasterboard screw used to install the lining does not establish the load capacity of the finished wall.
Check for concealed services
Before driving into an existing wall or ceiling, consider cables, pipes and other concealed hazards. Look at both sides of the surface where possible, review available service information and use suitable detection and investigation methods.
A detector has limitations and should not be treated as proof that an area is clear. If the service route or framing position cannot be established with sufficient confidence, stop and obtain competent assistance before continuing.
This is especially important when overboarding older ceilings or walls, where the existing construction may have been altered and the original framing may not be visible.
A practical ordering check
Before adding a box to the basket, confirm:
- timber or metal framing;
- the metal thickness where applicable;
- sharp or self-drilling point;
- total board thickness and number of layers;
- loose or collated format and tool compatibility;
- the required head and driver bit; and
- the environment and any system-specific requirements.
The useful distinction is therefore not simply coarse versus fine thread. The correct choice brings together the substrate, point, length, head, finish and tested lining specification. Checking those details first is quicker than correcting damaged board or rebuilding a lining that was fixed with the wrong screw.
