Impact Driver Bit Types: A UK Trade Guide

An impact driver can make repetitive fixing work quicker, but it will not compensate for the wrong bit. Choosing between impact driver bit types starts with the screw recess or external head being driven. The profile, size, reach and impact suitability all need to match the fixing and the work.

A close-fitting bit helps reduce cam-out, damaged recesses and wasted screws, particularly when driving long timber screws, decking screws or self-drilling screws. If the connection feels loose or the bit starts slipping from the first turns, stop and check it rather than applying more force.

Start with the working tip

Most impact drivers use a quick-release holder for accessories with a 1/4 inch hex shank. That measurement describes the end retained by the tool. It does not identify the working tip that engages the fastener.

The screw packaging, product listing or installation instructions should state the required drive profile and size. Match both parts exactly. A PZ2 bit is not an alternative to PH2, and a TX25 bit should not be used because it happens to grip a different six-lobe recess loosely.

Phillips bits

Phillips bits are marked PH and have a cross-shaped working tip. Common sizes include PH1, PH2 and PH3, but the number must be taken from the screw specification rather than estimated from the screw diameter.

Phillips and Pozidriv can look similar at a glance. A mismatched cross-head bit may start the screw but fail to seat fully, concentrating force on a smaller contact area. Under impact loading, that makes slipping, recess damage and bit wear more likely.

Pozidriv bits

Pozidriv bits are marked PZ. The recess has four main cross slots with additional smaller ribs between them. PZ2 is frequently encountered in UK timber and general-purpose screws, but it must still be confirmed from the particular fixing.

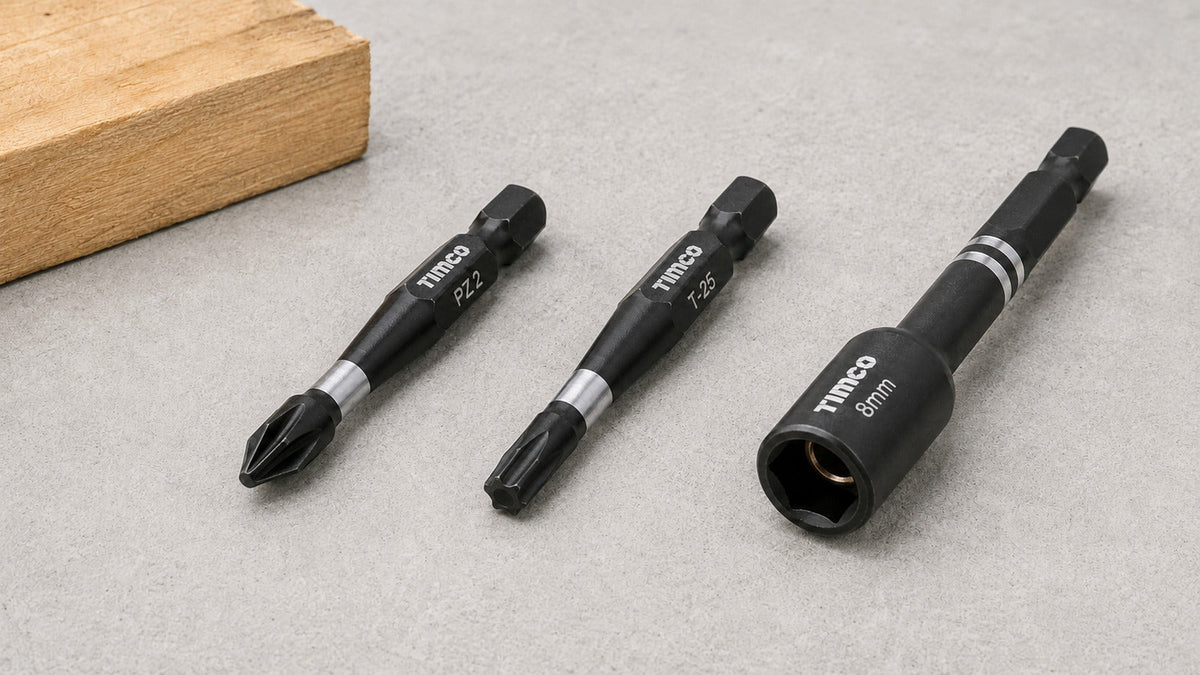

For repeated impact driving, use a product whose manufacturer identifies it for impact use. The TIMCO PZ2 x 50 mm Impact Driver Bit has a 1/4 inch hex shank and is made from hardened carbon steel. TIMCO states that its X6 construction is formulated to absorb torque peaks from powered impact tools, with reduced body hardness intended to withstand high loads.

That impact construction does not correct a poorly matched recess. The bit still needs to enter fully and remain square to the screw.

Torx and six-lobe bits

Torx is a proprietary name commonly used for the familiar six-lobe profile. TIMCO identifies its comparable driver bits with TX size markings such as TX20, TX25, TX30 and TX40.

The profile can provide positive engagement when the correct size is used, but it is not immune to slipping or wear. A bit that is too small can rock in the recess and damage both components. A bit that is too large will not seat properly.

The TIMCO TX25 x 50 mm Impact Driver Bit is a hardened carbon-steel X6 accessory with a 1/4 inch hex shank. As with the PZ version, TIMCO specifies heat treatment, reduced hardness at the body and a black phosphate finish as features of its impact design.

Tamper-resistant six-lobe screws have a centre pin and need the matching security bit with a hole in its tip. Do not force an ordinary bit over the pin or attempt to modify one.

Internal hex and square-drive bits

Internal hex bits, often called Allen bits, fit a six-sided recess. Square-drive or Robertson bits fit a square recess. Both require exact sizing and full engagement. A near match can round the internal corners, particularly when the fixing is tight or contaminated with paint, corrosion or debris.

These profiles are available in different metric and imperial sizes. Do not assume that a close imperial and metric measurement is interchangeable. Use the size stated by the fastener manufacturer.

Nut drivers and external hex heads

An external hex-head fixing needs a socket driver or nut driver of the correct size rather than a screwdriver tip. The TIMCO 8 mm Impact Magnetic Socket Driver is a 65 mm accessory intended for 8 mm hex-head screws installed with an impact driver. TIMCO states that it is designed to withstand the rotational and downward forces produced by an impact driver, while its magnet helps retain a compatible fastener.

The magnet helps with retention. It does not make the wrong socket size fit, increase the fastener's load capacity or confirm suitability for a particular substrate.

Slotted and specialist profiles

Slotted bits fit a single straight recess. They provide less guidance than a fully enclosed profile, so it can be difficult to keep the blade centred under impact. For delicate visible ironmongery, painted surfaces or small traditional screws, a hand screwdriver or drill driver with suitable control may offer a better result.

Other profiles include security six-lobe, clutch-head, tri-wing and specialised proprietary systems. Use the correct purpose-made bit and confirm whether that exact accessory is suitable for impact driving. Do not grind or modify another profile to make it fit.

What makes a bit suitable for impact use?

A 1/4 inch hex shank only shows that an accessory can fit a compatible holder. It does not prove that the accessory is designed for repeated impact loads.

Purpose-made impact accessories use product-specific materials, heat treatment and geometry to cope with shock loading. TIMCO's X6 PZ and TX bits, for example, are described as absorbing torque peaks through their metal composition and treatment. This is not the same as saying that every impact bit has a visible torsion waist.

A separate holder may include its own torsion feature. The TIMCO 60 mm Magnetic Bit Holder has a 1/4 inch hex drive and a specified torsion zone designed to withstand pressure from an impact driver. It can hold compatible short insert bits, but the inserted bit must also suit the fixing and intended use.

Longer bits and holders can improve access around brackets or inside recesses. They can also make it harder to keep the driver aligned. Use only as much reach as the job requires and support the tool so the working tip remains square.

Socket adaptors and impact sockets

A socket adaptor converts the impact driver's 1/4 inch hex connection to a square drive for a socket. The adaptor and socket must each be expressly suitable for impact use and must remain within their stated size and torque limits.

Do not judge a socket by colour or finish alone. A standard hand socket is not automatically suitable for impact loading simply because it fits the adaptor. Use the accessory manufacturer's description and instructions.

An impact driver is also not a direct substitute for an impact wrench. Larger fasteners and higher-torque applications may require a different square-drive tool and socket system. Where a fixing has a specified final tightening torque, follow the installation method and use suitable calibrated equipment. An impact driver's action does not provide a reliable final torque value by itself.

Choosing the correct length and holder

Standard-length bits provide good control where the screw head is accessible. Longer bits can reach past obstructions, while a magnetic holder can make short-bit changes quicker and help retain a screw during positioning.

Extra reach introduces more opportunity for movement. Start the fastener slowly, keep the driver in line and apply only enough forward pressure to maintain full engagement. If the bit begins to climb out of the recess, release the trigger and identify the cause.

Common causes of damaged bits and screws

• Wrong profile: PH and PZ cross-head systems are not interchangeable.
• Wrong size: A loose bit concentrates force at the edges of the recess.
• Non-impact accessory: Physical fit in the holder does not establish impact suitability.
• Poor alignment: Driving at an angle encourages cam-out and uneven wear.
• Worn working tip: Rounded edges no longer fill the recess correctly.
• Contaminated recess: Paint, swarf, plaster dust and corrosion can prevent full engagement.
• Excessive reach: Long extensions can make alignment harder to control.
• Wrong socket system: The adaptor and socket must both suit impact use and the intended load.

Before changing a bit, holder or adaptor, make the tool safe according to its instructions. Inspect accessories regularly and replace bits with rounded edges, cracks, burrs or distortion. Do not use driver bits as punches, chisels or drill bits.

A practical selection check

Before ordering, confirm the working profile, size, length, shank, impact suitability and pack quantity. For external hex heads, check the exact socket size. If a holder or adaptor is needed, verify that it and the attached accessory are both intended for impact use.

Finally, keep bit choice separate from fixing design. A perfectly matched TX25 or PZ2 bit does not prove that the screw is suitable for structural timber, metalwork, fire-rated construction or another specified connection. The fixing, substrate and installation instructions remain the deciding factors.
