Learning how to cut threaded rod cleanly prevents a damaged lead thread from turning a simple fixing job into a fight with the nut. The best method depends on the rod diameter and material, the number of cuts and whether abrasive sparks are acceptable.
This guide concerns loose threaded rod being prepared before installation. Never cut an installed rod that may be supporting pipework, cable trays, ductwork, suspended ceilings, plant or structural components. Any alteration to a loaded or safety-critical support must be assessed, unloaded and properly supported by a competent person before work begins.
## Check the thread, material and grade
Confirm the diameter and thread system before measuring. Metric threaded rod is identified by an M size, such as M6, M8, M10 or M12. Some installations use imperial threads. A nut that appears close in diameter may have a different pitch, so test with a clean matching nut.
Material and strength grade also affect tool choice. Bucko's TIMCO range includes Grade 4.8 zinc-plated carbon-steel bar, Grade 8.8 high-tensile zinc-plated bar and A2 stainless-steel bar. A representative option is the [TIMCO Grade 4.8 M10 Zinc Threaded Bar](https://buckotoolsandfixings.co.uk/products/threaded-bars-grade-4-8-zinc-m10-x-1000-10tbz).
Higher-strength rod may require greater cutting effort and must not be substituted with a lower grade simply because the diameter matches. A2 stainless offers useful corrosion resistance in many environments, but suitability still depends on the exposure and the project specification.
Cutting zinc-plated rod exposes the carbon-steel core at the end. Where corrosion protection matters, treat the cut face using the method specified for the installation. When working with stainless steel, use suitable clean tools and abrasives to reduce the risk of contamination from carbon steel.
## Measure and mark the finished length
Measure from the datum that matters in the completed assembly. Allow for washers, brackets, nuts, couplers and any specified thread engagement or resin embedment. Do not assume that a few engaged threads are adequate for a loaded fixing.
Mark the required finished length with a fine marker or scribe. A neat wrap of masking tape can make the position easier to see, but the tape edge must be square around the rod. Place the saw blade, disc or cutter on the waste side of the mark and account for the width of the cut where close dimensional accuracy is required.
For repeated lengths, work from the same datum or a properly set stop. If using a completed piece as a reference, use the same master each time and allow for the cutting position.
## Fit a nut before cutting

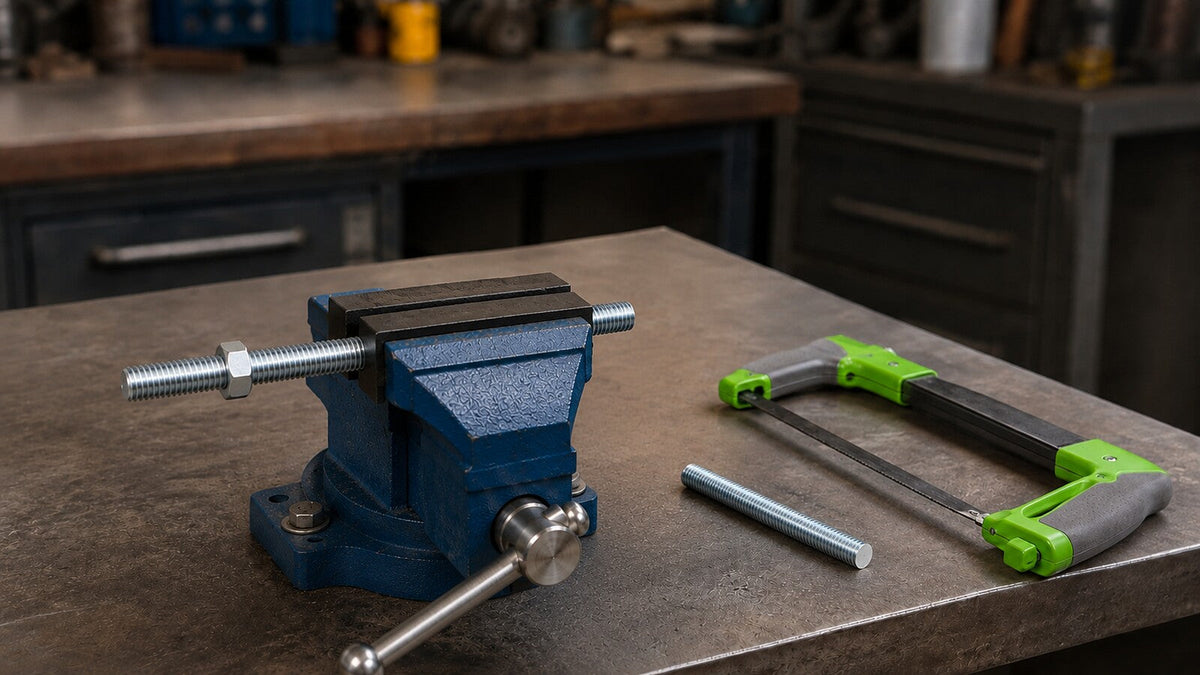

Thread a clean, correctly sized nut onto the part of the rod that will be retained. Wind it beyond the intended cut line so it sits far enough back to leave safe clearance for the tool.
After cutting and filing, slowly winding this nut off over the new end can clear very light residual burrs and reveal whether the lead thread is damaged. It does not repair a crushed or torn thread. If the nut binds, stop rather than forcing it with a spanner.
## Secure and support the rod
Clamp the rod firmly in a stable bench vice, with the cut position close enough to the jaws to limit vibration while leaving adequate tool clearance. Protect any threads that must remain usable with proper soft jaws or clean timber packing. Loose cloth or rags are unsuitable because they can compress, slip or snag.
Support both the retained length and any long or heavy offcut. An unsupported waste section can drop as the cut finishes, pinch the blade or disc, tear the final threads or strike someone below the work.
Wear suitable eye protection for every cutting method. Follow the tool manufacturer's instructions and the task risk assessment for any additional face, hearing, respiratory, hand or clothing protection.
## How to cut threaded rod with a hacksaw
A hacksaw is often the most controlled choice for occasional cuts and occupied locations where abrasive sparks would be unacceptable. It produces little heat and gives the operator time to keep the cut aligned.
Use a rigid frame with a sharp bi-metal blade suitable for the rod material and diameter. The [TIMCO Professional Hacksaw](https://buckotoolsandfixings.co.uk/products/professional-hacksaw-12-hd12hsf) is supplied with 18, 24 and 32 TPI bi-metal blades. Select the blade in accordance with the blade manufacturer's guidance, keeping enough teeth engaged in the work to avoid snagging.
Place the blade on the waste side of the mark and use a few light, controlled strokes to establish a guide notch. Once the blade is tracking, use steady strokes and keep the frame square to the rod. Do not force a blunt blade or rotate the rod in an attempt to meet separate cuts around its circumference, as the cuts may not align.
Reduce pressure as the blade reaches the final part of the section. This helps prevent the offcut tearing away and leaving a ragged end.
## How to cut threaded rod with an angle grinder
An angle grinder cuts larger diameters and harder materials quickly, but introduces abrasive-wheel, noise, fire and hot-metal hazards. Use it only where site controls allow.
Fit a reinforced metal cutting disc that suits the rod material and is compatible with the grinder's diameter, bore and maximum operating speed. [HSE abrasive-wheel guidance](https://www.hse.gov.uk/pubns/books/hsg17.htm) covers wheel selection, mounting, guarding and portable grinders. Inspect the disc, isolate the grinder before changing it and keep its guard and auxiliary handle fitted.
Remove combustible materials from the spark path and protect nearby surfaces. HSE guidance identifies cutting and grinding as ignition sources within [permit-to-work systems](https://www.hse.gov.uk/comah/sragtech/techmeaspermit.htm), so check the site's fire controls. Use the protective equipment and training required by the grinder, disc and workplace instructions.
Allow the grinder to reach operating speed, then bring the disc gently onto the waste side of the mark. Keep the disc square and use light, progressive pressure. Do not twist or side-load a thin cutting disc, as this can damage or break it. Support the offcut so it cannot droop and trap the disc.
The rod and offcut may remain hot after cutting. Allow them to cool in a safe position before handling or dressing the end.
## Using a dedicated threaded-rod cutter
A purpose-made threaded-rod cutter can be efficient for repeated work and may require less finishing than an abrasive cut. Its dies are intended for particular thread sizes.
Check the cutter manufacturer's stated diameter, pitch, material and strength-grade capacity before use. A cutter intended for lower-strength carbon steel may not be suitable for Grade 8.8 or stainless bar. Inspect every cut rather than assuming the thread is ready for a nut.
Operate the cutter on a stable surface and control the offcut. Do not treat cutting overhead or from a ladder as a routine shortcut. Ordinary bolt croppers are not a substitute because their jaws can crush the rod and flatten several threads.
## File and test the new end
Inspect the cut face. If it is badly angled or torn, recutting may be quicker and more reliable than trying to recover it.
Use a fine metal file, such as one from the [TIMCO File and Needle File Set](https://buckotoolsandfixings.co.uk/products/file-and-needle-file-set-16pcs-468251), to remove the face burr. Then create a very small bevel around the outside edge. Remove only enough material to give the nut a clean lead-in. An excessive taper removes useful thread engagement.
Wind the pre-fitted nut slowly towards and off the cut end. If it catches, wind it back and inspect for a folded burr, flattened crest or damaged thread root. A small needle file or correctly matched thread-restoring die may deal with limited damage. If the first thread is badly torn, cut the damaged section off and finish the end again.
Finally, wind a clean matching nut onto the new end by hand. It should engage squarely and travel without binding. Remove all swarf and filings before the rod is installed, particularly where it will be used with chemical resin or close to finished surfaces.
## Common mistakes to avoid
* Cutting before checking the rod diameter, pitch, material and grade.
* Measuring without allowing for washers, nuts, brackets or specified engagement.
* Putting the pre-fitted nut on the waste section instead of the retained section.
* Crushing usable threads directly in serrated vice jaws.
* Leaving the offcut unsupported.
* Forcing a nut over a burred or cross-threaded end.
* Using a cutting disc that is incompatible with the grinder or rod material.
* Assuming a newly exposed steel end retains the corrosion protection of the original coating.
## Know when site cutting is inappropriate
TIMCO Grade 4.8 zinc-plated threaded bar is available in 1,000mm lengths from M6 to M20 and selected 300mm lengths from M6 to M16. Choosing a suitable shorter length may avoid unnecessary cutting on some jobs.
Where threaded rod forms part of a structural connection, chemical anchoring system, overhead suspension, fall-restraint installation, fire-rated detail or safety-critical assembly, follow the engineer's design and the fixing manufacturer's documentation. Rod grade, embedment, edge distance, hole cleaning, corrosion protection and thread engagement cannot be determined from diameter alone.
A reliable cut comes from accurate measurement, secure workholding and careful finishing rather than speed. Fit the nut to the retained section, cut on the waste side of the mark, dress only the damaged edge and test the thread by hand before installation.
