uPVC window fixing screws need to suit both the window-frame system and the material surrounding the opening. Select the fixing by checking the intended substrate, the actual fixture thickness and the manufacturer’s required embedment or drill-hole depth. Always follow the window manufacturer’s fixing instructions and any project specification.
What Through-Frame Fixings Are For
Outer-frame window fixings pass through the uPVC profile to secure the window assembly to the surrounding structural reveal.
They differ from assembly fasteners such as TIMCO 4.2 x 42 mm Cill Screws, which are specifically intended for attaching cills to the base of door or window frames. A cill screw should not be ordered as a substitute for an outer-frame fixing.
The substrate condition, fixing position, packing arrangement and installation method must be assessed against the window manufacturer’s instructions, the fixing manufacturer’s data and any project specification.
Because frame profiles, reinforcement and permitted fixing positions vary between window systems, general screw guidance helps with product selection but does not replace the window supplier’s instructions.
Start With the Substrate
The material surrounding the opening is a key factor when choosing uPVC window fixing screws. A fixing intended for dense masonry should not automatically be treated as suitable for lightweight blockwork, timber or metal.
Brick, Concrete and Dense Masonry

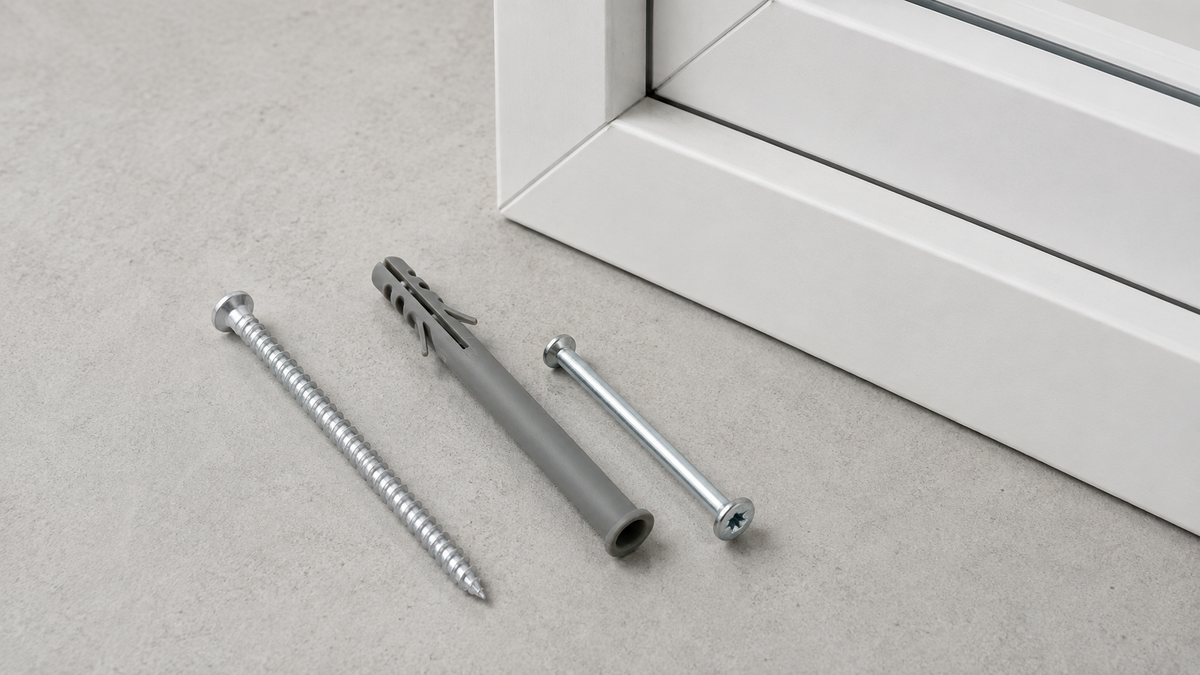

For solid brick, stone, dense concrete block and concrete, one option is a direct concrete screw. These cut a mating thread into a correctly sized pre-drilled hole without using an expansion plug.
The TIMCO exterior silver concrete-screw range includes:
- 7.5 x 100 mm Exterior Silver Concrete Screws, with a stated maximum fixture thickness of 50 mm and minimum embedment depth of 50 mm.
- 7.5 x 120 mm Exterior Silver Concrete Screws, with a stated maximum fixture thickness of 70 mm and minimum embedment depth of 50 mm.
Both use a 6 mm drill-hole diameter and have a flat countersunk head with a TX drive.
Another option for the substrates listed by TIMCO is the 10 x 120 mm Nylon Frame Fixing. It has a maximum fixture thickness of 70 mm, a 10 mm drill-hole diameter and a minimum drill-hole depth of 60 mm.
Check the condition and type of substrate at every intended fixing position. Follow the fixing manufacturer’s stated substrate and installation requirements rather than assuming one fixing will suit every part of the opening.
Measuring Fixture Thickness and Screw Length
Selecting the correct screw length requires measuring the actual fixing path rather than estimating from the visible wall or nominal window dimensions.
Fixture thickness is the total thickness passed through before the fixing reaches the supporting substrate. Depending on the approved installation detail, this can include the relevant frame section, installation gap and packing along that fixing path.
The measured fixture thickness must not exceed the manufacturer’s stated maximum for the selected fixing. The required embedment or drill-hole depth must also be achieved.
For example:
- A 7.5 x 100 mm exterior concrete screw has a maximum fixture thickness of 50 mm.
- A 7.5 x 120 mm exterior concrete screw has a maximum fixture thickness of 70 mm.
- A 10 x 120 mm nylon frame fixing has a maximum fixture thickness of 70 mm.
If the measured fixture thickness exceeds the product’s stated maximum, choose another approved size or fixing method. Do not assume that the longest available screw is automatically the safest choice.
Check the Head and Drive
The head and drive must suit the window system’s approved fixing detail and the tools being used.
The exterior silver concrete screws listed above have a flat countersunk head with under-head ribs and a TX drive. The nylon frame fixing uses a countersunk screw with a Pozi recess.
Use the correct driver bit in good condition and keep it properly engaged with the recess. The window manufacturer’s instructions decide how the head should seat within the frame and whether any finishing component is required.
Choose the Protective Finish Carefully
Window fixings form part of an external-wall assembly, but exposure conditions vary considerably. Do not select a finish solely because the installation involves a window.
TIMCO describes the silver organic finish on its exterior concrete screws as corrosion resistant and reports resistance to 500 hours of salt-spray testing. This is a laboratory coating test, not a guarantee of service life.
The required finish or fixing material must still be checked against:
- the window-system instructions;
- the expected moisture and environmental exposure;
- any project specification;
- the fixing manufacturer’s current technical data.
Coastal, persistently damp or otherwise aggressive environments may require a specifically approved material or coating.
A Practical Ordering Check
Before ordering uPVC window fixing screws:
- Confirm the window manufacturer’s permitted fixing method and positions.
- Identify the substrate at each intended fixing point.
- Measure the actual fixture thickness along the fixing path.
- Check the product’s maximum fixture thickness, drill-hole diameter and minimum embedment or drill-hole depth.
- Confirm that the head, drive and protective finish suit the installation requirements.
Do not substitute a cill screw, fabrication screw or general-purpose screw for a specified outer-frame fixing simply because its overall length appears suitable.
When Specialist Specification Is Required
This guide covers general product selection for non-load-bearing window installations. Structural, fire-rated, safety-critical or otherwise specified systems require the fixings and installation method stated by the responsible designer, window-system supplier or project specification.
