A cavity fixing must match the wall construction, lining thickness, available void and demands of the item being fitted. Start by identifying what is behind the wall surface, then check the fixing’s published grip range, drill-hole diameter and cavity requirements.
In this guide, cavity fixing means a fixing designed to operate in plasterboard, a hollow internal partition or a suitable dry-lined wall. These products should not be assumed suitable for the open cavity in an external masonry wall or for hollow masonry units unless the fixing manufacturer specifically approves that use.
Assess the wall before choosing a fixing
Establish whether the wall is plasterboard on timber or metal studs, plasterboard over masonry, or another type of hollow internal lining.
Where a timber stud is available in the required position, fixing into it with an appropriate wood screw can provide a more direct solution than relying on the plasterboard alone.
With dry-lined masonry, often called dot-and-dab construction, the depth of the space behind the board and the condition of the masonry can affect the required fixing method and length. Do not assume a standard plasterboard cavity fixing will reach or work with the solid material behind the lining.
Check for concealed services
Electrical cables and water or gas pipes may run through studs, behind boards or within service voids. Take particular care near switches, sockets, consumer units, radiators and plumbing fittings.
Electronic detectors can help identify probable service routes, but they should not be treated as proof that an area is clear. If the wall construction or service location remains uncertain, stop and investigate before drilling.
Choose the appropriate fixing type

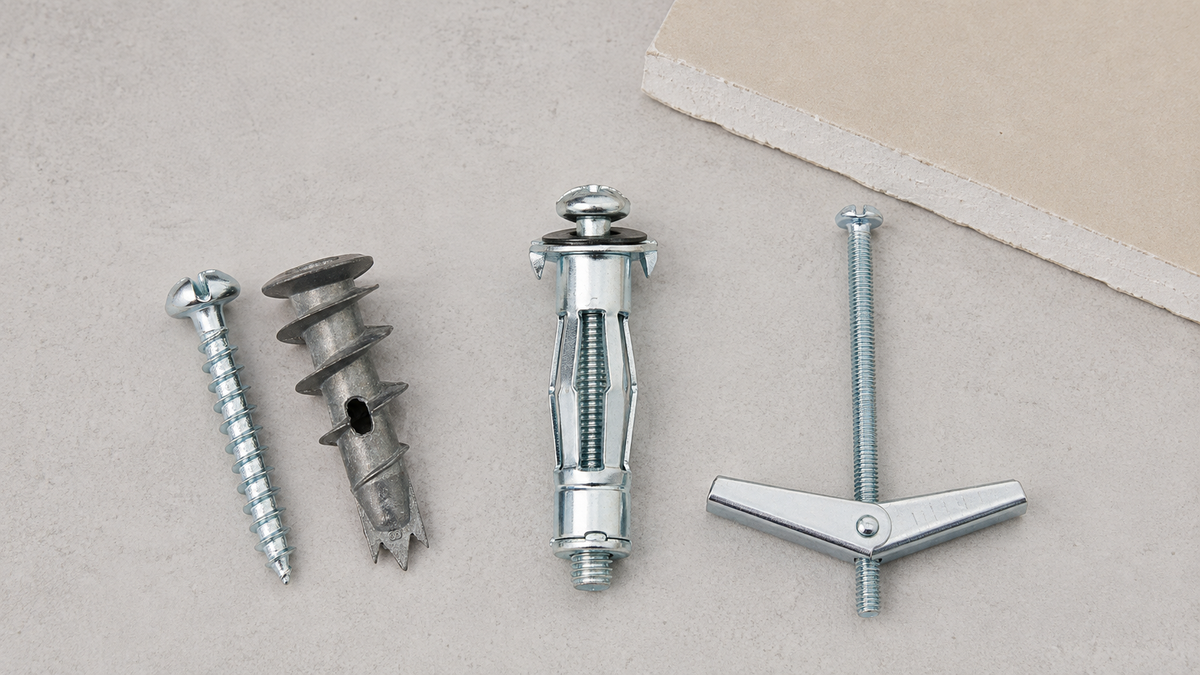

Different cavity fixings grip the wall in different ways. The correct option depends on the lining, its thickness and the clear space behind it.
Self-drilling plasterboard plugs
Self-drilling metal plugs are intended for rapid installation into plasterboard.
TIMCO Metal Speed Plugs are described by TIMCO as rapid, light-duty plasterboard fixings for a wide range of applications.
The TBAZSB product has:
- a 31.5 mm metal speed plug;
- a supplied 4.5 × 30 mm screw;
- a maximum fixture thickness of 6 mm;
- a cross recess for screwdriver installation.
Use this type only where the plasterboard is sound and the application falls within the fixing manufacturer’s stated limitations.
Metal cavity anchors
Metal cavity anchors pass through a pre-drilled hole and clamp against the rear of a compatible hollow lining.
Two relevant TIMCO sizes are:
- TIMCO M5 × 37 mm Metal Cavity Anchors, with a 45 mm screw and a grip range of 6 to 13 mm;
- TIMCO M5 × 52 mm Metal Cavity Anchors, with a 60 mm screw and a grip range of 7 to 16 mm.
Both products require a 10 mm drill hole and specify a 5 mm fixture-hole diameter.
The actual thickness of the compatible lining clamped by the anchor must fall within the published grip range. Do not select an anchor by its overall length alone.
When installing multiple anchors, TIMCO recommends its cavity anchor setting tool as a fast and efficient installation method.
Spring toggles
Spring toggles use folding metal wings that pass through a pre-drilled hole before opening within the clear void behind the lining.
TIMCO M5 × 50 mm Spring Toggles require:
- a 14 mm drill hole;
- at least 30 mm of clear cavity depth for the wings to open;
- no more than 20 mm combined wall-and-fixture thickness.
TIMCO describes spring toggles as ideal for overhead installations, with wings that spread the load over a wider area and make them more suited to heavier loads. This description is not a numerical load rating or a guarantee that the fixing will suit a particular installation.
Check grip thickness and cavity space
A cavity fixing must fit the actual wall arrangement, not an assumed standard thickness.
Measure the lining
Measure the thickness of the compatible lining where possible. For a metal cavity anchor, the material being clamped must fall within the product’s stated grip range.
A 6 to 13 mm or 7 to 16 mm grip range should not be treated as automatic confirmation that the fixing suits every single-board or multiple-board wall.
Confirm the clear void
Metal cavity anchors and spring toggles require sufficient unobstructed space behind the lining to operate as designed.
The apparent depth of the wall does not guarantee a clear void. Studs, solid backing and other obstructions can affect the available space.
Use the specified drill-hole diameter
Use the drill-hole diameter stated in the current product data:
- 10 mm for the featured M5 metal cavity anchors;
- 14 mm for the featured M5 × 50 mm spring toggle.
Do not substitute a different drill size based on another fixing that looks similar.
Consider how the load will act
The weight of the item is only part of the selection.
Also consider whether the item:
- projects away from the wall;
- will be pulled during normal use;
- is handled repeatedly;
- may be knocked or subjected to impact;
- places uneven demand on its fixing points.
Several fixings may help distribute an installation across a wider area, but their individual capacities must not simply be added together to produce a total load rating. The wall condition, fixing positions, bracket design and installation method all affect how the load is shared.
Know when a standard cavity fixing is not enough
Follow the item manufacturer’s installation instructions, the fixing manufacturer’s technical data and any project specification.
Safety-critical, dynamic or heavily loaded installations may require structural backing, a specified fixing system or assessment by the responsible designer. This can include boilers, heavy radiators, accessible grab rails, handrails and large wall-hung equipment.
Do not rely on a general plasterboard fixing where failure could cause injury or significant damage.
Final selection checklist
Before ordering, confirm:
- The wall is plasterboard or another compatible hollow lining.
- The intended fixing position is clear of concealed services.
- The lining thickness falls within the fixing’s published grip range.
- There is enough clear cavity depth for the fixing to operate.
- The correct drill-hole diameter is known.
- The fixture thickness and fixing-hole size are compatible.
- The fixing method is appropriate for the weight and way the item will be used.
- Any safety-critical installation follows the relevant manufacturer or project specification.
Identifying the wall correctly and checking the published dimensions will narrow the choice quickly. If the wall construction remains unclear or the consequence of failure is high, pause the job and obtain project-specific advice before drilling.
