Choosing between gate hinge types starts with the gate, the supporting post and the way the gate must sit in the opening. Weight matters, but so do width, height, frame construction, mounting position, ground clearance and exposure. A hinge that looks substantial can still be wrong if its geometry or stated capacity does not suit the gate.
Before ordering, check where the hinge will fasten into the gate frame, what the post or pier is made from, and whether the gate needs to sit in front of the post or flush with it. The hinge manufacturer's dimensions and ratings should take priority over a visual estimate.
What to check before choosing gate hinges
A gate acts as a lever on its hinges and post. As its width and weight increase, so does the demand placed on the hinge line and supporting structure. The post must be stable, the gate frame must be sound, and the hinge straps must fasten into substantial rails or ledges rather than thin cladding alone.
Check these points together:
- the gate's weight, width, height and construction;
- the position and thickness of its structural rails;
- the post material and available fixing depth;
- whether the gate will sit proud of or flush with the post;
- the opening direction and clearance across the full swing;
- the ground level, including any slope or raised threshold; and
- the exposure and finish required for the location.
Do not apply one third-hinge rule to every product. Some TIMCO gate-hinge ranges state that doors or gates over 2,130 mm high should use a third hinge to help prevent warping, but that instruction belongs to those specific products. Check the data for the exact hinge being considered.

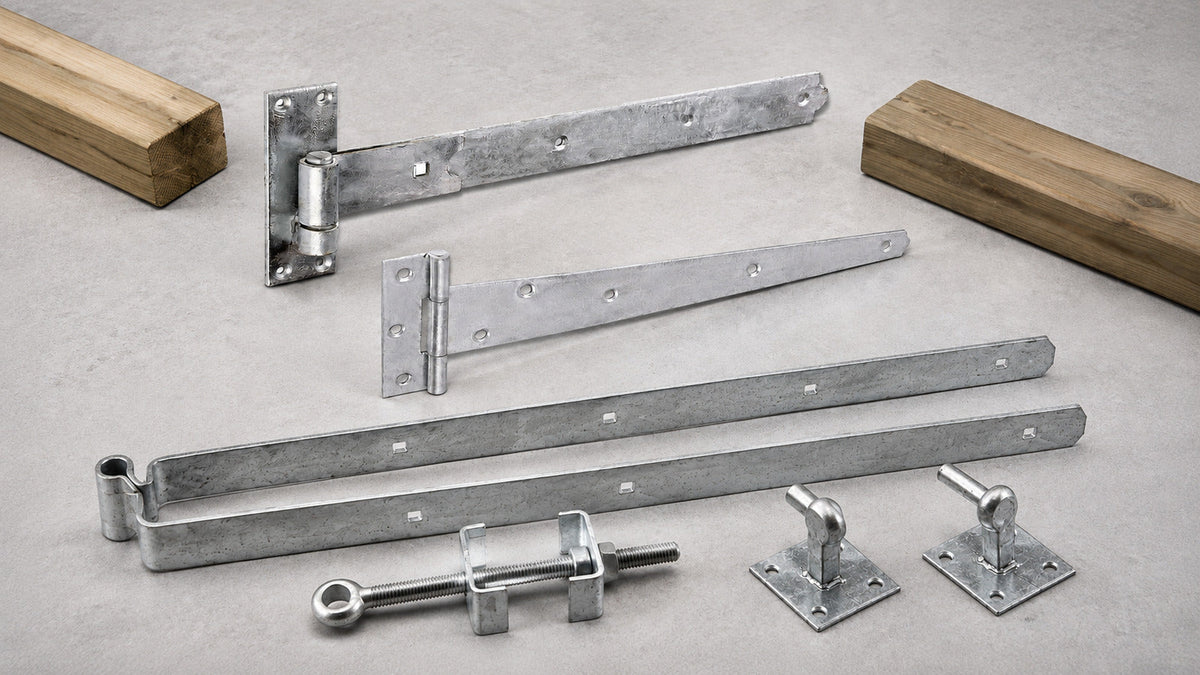

Hook and band hinges
Hook and band hinges use a long strap, or band, on the gate and a vertical pin, or hook, on the post or wall. Their length helps spread the load across a timber rail, making them a common choice for substantial timber gates, garage doors and stable doors.
Straight and cranked bands
A straight band is intended to hang the gate in front of the frame or post. The TIMCO HBS450G straight band and hook-on-plate pair has 450 mm bands made from 4.8 mm carbon steel with a hot-dip galvanised finish. TIMCO supplies the set with fixings.
A cranked band has an offset near the eye. This allows the gate to sit flush with the face of the frame or post. The difference affects the gate position and clearance, so a straight and cranked pattern should not be treated as interchangeable.
Selected TIMCO hook and band sets allow the top or bottom pin to be mounted upside down, depending on the gate's weight distribution, to help deter unwanted lift-off. Follow the instructions for the exact set. This arrangement should not be described as a complete security system.
Adjustable hook and band hinges
An adjustable band uses a threaded eye and locking nuts to alter the gate's position during fitting or after minor movement. The TIMCO ABH450G adjustable band and hook-on-plate pair has 450 mm bands, a 5 mm band thickness and a hot-dip galvanised finish. It is intended to hang a gate flush with the frame or post, and fixings are included.
Adjustment is useful for final alignment, but it cannot correct a loose post, distorted gate frame or inadequate foundation. If a gate repeatedly drops after adjustment, find and repair the underlying movement.
Tee hinges
Tee hinges combine a long tapered strap with a rectangular leaf and fixed knuckle. The strap fastens across a gate or door rail, while the leaf fixes to the post or frame. They are straightforward surface-mounted hinges for suitable garden gates, shed doors and garage doors.
The duty description alone is not enough. Compare the manufacturer's gate-weight and width limits as well as the strap dimensions. The 300 mm TIMCO MTH12GB medium tee hinge pair has a 2 mm strap, a 9.5 mm knuckle and a 100 x 25 mm leaf. TIMCO rates it for gates from 600 to 900 mm wide with a maximum gate weight of 30 kg. Fixings are not included.
TIMCO's 300 mm strong tee hinge is a different product, with a 2.3 mm strap, 12 mm knuckle and stated maximum gate weight of 40 kg for the same 600 to 900 mm gate-width range. Those figures show why two hinges of similar length should not be assumed to have the same capacity.
When selecting fixings for a tee hinge, match them to the hinge holes, timber thickness, substrate and exterior exposure. Do not use screws that can break through the finished face or that lack sufficient sound material to hold them.
Fieldgate and driveway-gate hinge sets
Wide fieldgates and timber driveway gates often use a dedicated set rather than a pair of ordinary surface hinges. These systems can combine a wraparound top strap, an adjustable lower heel fitting and hooks selected for the supporting post.
The TIMCO AFHP600G adjustable fieldgate hinge set uses a 600 mm top strap made from 6 mm carbon steel. The strap wraps around the gate and the lower heel clip provides adjustment for alignment. This version uses hook-on plates and is listed for timber, concrete or masonry posts.
TIMCO lists the 600 mm set for gates 2,700 to 3,600 mm wide and 75 mm thick. Those dimensions are product selection limits, not a substitute for a verified load assessment. The gate construction, post, foundations, wind exposure and usage still need to be suitable.
The hook-to-bolt has a drilled hole that can accept an appropriate R clip or linch pin to help prevent lift-off. Those retaining clips are not included with the set, so they must not be assumed to be in the pack.
For timber posts, TIMCO also offers fieldgate sets with hooks to drive. A hook intended for timber should not be substituted for a plate intended to be fixed to masonry or concrete. Match the hook style and fixings to the actual post construction.
Weld-on hinges for steel gates
Fabricated steel gates may use separate weld-on hooks and eyes rather than timber gate hinges. TIMCO's self-coloured gate hooks to weld and gate eyes to weld are individual carbon-steel components designed to be paired by compatible size.
The correct arrangement depends on the gate fabrication and post design. Welding should be completed by a competent person using appropriate hot-work controls. Any corrosion protection disturbed by fabrication must be restored using a coating system suitable for the finished assembly and its environment.
Screw-fixed hardware is not automatically unsuitable for every metal gate, and weld-on hardware is not automatically required. The gate design, available mounting faces and manufacturer's specification decide the appropriate system.
Butt hinges and rising butt hinges
Butt hinges are more commonly associated with framed doors and closely fitted joinery than with general timber gate construction. They may be appropriate in a gate or exterior joinery design that specifically accommodates them, but they should not be chosen simply because they give a concealed appearance when closed.
A rising butt hinge is a different product again. The TIMCO 434910 rising butt hinge is described for uneven floors or obstructions such as deep-pile carpets. It is not one of the gate-hinge products compared in this guide. Do not infer an outdoor gate application from the word "rising" without manufacturer confirmation.
Finish and exposure
Hot-dip galvanised gate hardware is widely used for exposed domestic and agricultural applications. It provides a zinc coating over the steel, but suitability should still be checked against the product's corrosion rating and the actual environment. Coastal exposure, persistent salt, chemical contact and contact with treated timber may require more specific guidance.
Black epoxy or other decorative finishes can suit a traditional appearance, but damage to the coating may expose the steel beneath. Inspect outdoor hardware periodically and address corrosion or coating damage in accordance with the manufacturer's recommendations.
Use compatible exterior fixings specified for the hinge and substrate. Avoid broad assumptions based only on matching colours, as coating systems and base materials can differ.
Installation and safety checks
Support the gate securely throughout installation. Do not allow an unfixed hinge, one temporary screw or a person holding the gate to carry the full load while alignment is being adjusted.
Set the hinge line accurately and keep the pins aligned. Misaligned hinges can bind, load the gate frame unevenly and accelerate wear. Check the clearance at the heel, latch side and ground throughout the complete swing, while recognising the pinch and crush points around a moving gate.
After installation, operate the gate slowly and confirm that the fixings remain secure, the gate does not strike the ground or post, and any retaining arrangement works as intended. Recheck outdoor gate hardware periodically, particularly after post movement, impact damage or severe weather.
Heavy commercial gates, powered gates and access-control barriers require a competent gate specialist. Their design and safety assessment extend beyond choosing hinge hardware and must account for the complete moving system.
The best gate hinge is therefore the one that matches the gate dimensions, frame, post, mounting position and environment as a complete assembly. Start with those facts, then compare the manufacturer's stated geometry, capacity and supplied components before ordering.
