Choosing a Drill Bit for Porcelain Tiles

A drill bit for porcelain tiles must cut a very hard, brittle surface without skidding, overheating or placing excessive pressure on the tile. A porcelain-rated diamond bit is the sensible starting point for most fixing and service holes. Match the diameter to the finished hole, use rotary mode only and let the abrasive cutting edge work without forcing the drill.

Porcelain is usually denser and harder than standard ceramic wall tile. A bit that works well on ceramic may wear quickly or make little progress in porcelain. The choice also depends on whether you need a small fixing hole, a larger opening for a cable or pipe, or a hole that must continue into the wall or floor behind the tile.

Which drill bit is best for porcelain tiles?

Use a drill bit whose manufacturer specifically lists porcelain as a suitable substrate. Vacuum-brazed diamond tile bits grind through the tile with an abrasive crown rather than relying on a conventional sharpened cutting edge.

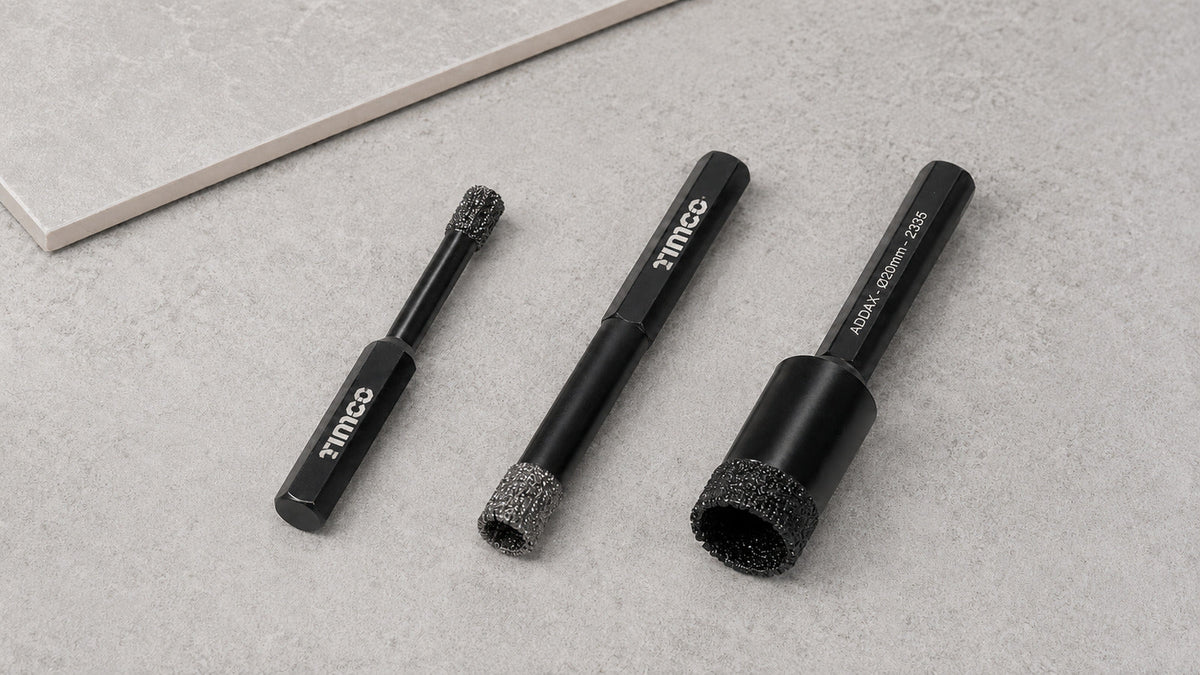

The TIMCO Premium Diamond Tile & Glass Bit range is listed for porcelain, ceramic, glass, granite and marble. It includes diameters from 5 mm to 25 mm, allowing the bit to be chosen around the required finished hole. For example:

• the TIMCO 6 mm Premium Diamond Tile & Glass Bit is 65 mm long;
• the TIMCO 10 mm Premium Diamond Tile & Glass Bit is 80 mm long; and
• the TIMCO 20 mm Premium Diamond Tile & Glass Bit is 80 mm long and provides a wider hollow cutting crown for a larger opening.

These bits use a vacuum-brazed diamond surface, an integrated lubricant and a non-slip hex shank. TIMCO states that they are suitable for wet or dry use and specifies rotary mode only.

Carbide spear-point or arrow-head tile bits are commonly sold for glass and ceramic. That does not automatically make them suitable for porcelain. TIMCO's TCT Arrow Head Tile & Glass Bit range, for example, is listed for glass and ceramics rather than porcelain. Check the stated substrates instead of judging a bit by its shape or by the general words "tile bit".

Do not use a standard HSS twist bit directly on porcelain. Do not use a standard masonry bit with hammer action on the tile face. Neither is designed to grind a controlled hole through hard porcelain, and hammer action can chip or crack the tile.

Match the diameter to the finished hole

Select the bit around what must pass through the tile and the fixing system used behind it. The porcelain hole must provide suitable clearance for the screw, plug, sleeve, pipe or fitting without leaving the screw bearing hard against the brittle tile edge.

For a wall fixing, check:

1. the hole diameter required by the plug or anchor;
2. the screw diameter and any sleeve that passes through the tile;
3. the diameter accepted by the bracket or fitting; and
4. the material behind the tile.

For a pipe, cable or other service, measure the item that must pass through the finished opening. Allow for any sleeve, movement gap, collar or sealing detail required by the system. A 20 mm bit makes a 20 mm nominal hole, but that does not mean it suits every pipe or fitting.

The TIMCO range covered here stops at 25 mm. If the job needs a larger opening, choose a separate core bit whose manufacturer expressly approves the required diameter, tile type and drilling method. Do not assume a masonry core bit is suitable for porcelain.

Drill the tile and the background as separate materials

A porcelain tile is a finish, not normally the load-bearing fixing substrate. The holding strength comes from the wall, floor or supporting construction behind it.

Where a fixing continues into brick, block or concrete, drill through the porcelain with the porcelain-rated bit first. Stop when the tile has been cleared, then change to the masonry bit specified for the plug or anchor. Hammer action may only be considered once the masonry bit is fully clear of the tile and the background material and fixing instructions permit it.

The same principle applies to plasterboard, tile backer board, timber and other backgrounds. Choose the anchor for that substrate and the expected load. A standard masonry plug may be unsuitable for a hollow wall, while a heavy item may require a structural background, noggin or purpose-designed support.

Do not rely on the tile, grout or adhesive to carry cabinets, basins, grab rails, radiators, large mirrors or other consequential loads. Follow the fitting and wall-system instructions, and obtain competent advice where the fixing is structural or safety-critical.

How to drill porcelain tiles without cracking them

Mark the drilling point accurately and check for concealed cables, pipes and other services before starting. A drilling guide or template can help control a hollow diamond bit on a smooth glazed surface.

For TIMCO Premium Diamond Tile & Glass Bits:

1. Set the drill to rotary mode only.
2. Use the manufacturer's recommended speed range of 1,500 to 3,000 RPM.
3. Hold the drill securely and start with light pressure.
4. Begin at approximately 30 degrees to establish the cutting edge, then bring the bit gradually upright to 90 degrees.
5. Continue with steady, controlled pressure and reduce pressure as the bit approaches breakthrough.

TIMCO states that the VBD range can be used wet or dry and includes an integrated lubricant to aid cooling. That instruction is product-specific. Other diamond bits may require water cooling or may be designed only for dry use, so always follow the packaging or technical data for the exact accessory.

If water is used, keep it controlled and away from electrical equipment and live electrical work. Support a loose tile fully on a suitable sacrificial board. For an installed tile, make sure the surface and background are sound before drilling.

Common mistakes to avoid

• Starting in hammer mode: Percussion can chip the glaze or fracture the tile.
• Applying excessive pressure: More force creates heat and increases the risk of cracking without necessarily cutting faster.
• Using an unverified ceramic bit: A bit listed for ceramic or glass is not automatically rated for porcelain.
• Drilling too close to an edge: Tile edges, corners, cut-outs and existing holes are more vulnerable to damage.
• Continuing into masonry with the tile bit: Change accessories once the porcelain has been cleared.
• Overtightening the fitting: Point pressure from a screw or bracket can crack porcelain during installation or later in service.
• Ignoring the background: The fixing must suit the wall or floor construction behind the tile.

Choosing with confidence

The right drill bit for porcelain tiles is one that is explicitly rated for porcelain, matches the required finished diameter and is used according to its own operating instructions. For the TIMCO Premium Diamond range, that means rotary mode only, controlled pressure and the stated speed range, with either wet or dry use permitted.

Plan the tile hole and the substrate fixing as two parts of the same job. Confirm the tile type, finished hole size, concealed services and background material before drilling. That short check is far cheaper than replacing a cracked porcelain tile or correcting a fixing that never reached a suitable substrate.
