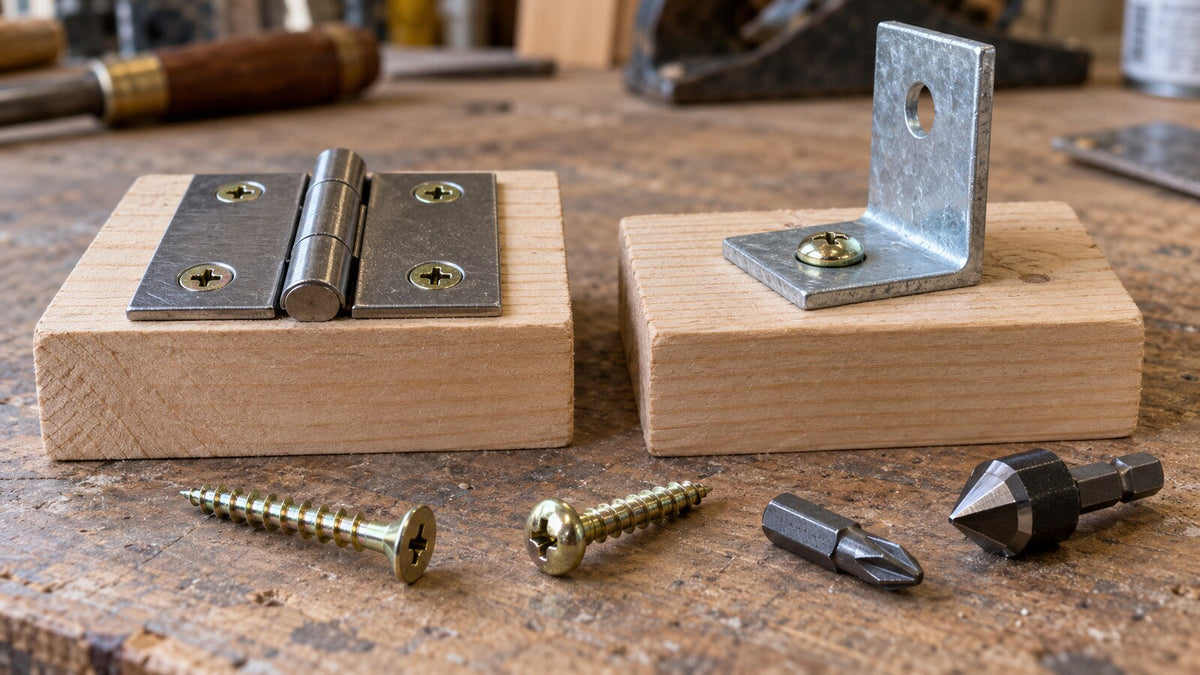

Choosing between countersunk and pan-head screws comes down to how the head needs to meet the surface or fitting. A countersunk screw is designed to sit flush in a matching recess. A pan head remains above the surface and uses its comparatively flat underside to clamp against a plain fixing hole.
Neither head is universally better. The correct choice depends on the fitting-hole shape, the required finish, the materials being joined and the manufacturer’s intended use for the complete screw. Head shape alone does not establish holding strength, corrosion resistance or structural suitability.
What the screw head does
The thread provides grip within the receiving material, while the head clamps the first component against it. The underside of the head is therefore an important contact surface.
A countersunk head has a tapered underside intended to seat in a matching tapered recess. A pan head normally has a flatter underside that bears against the face surrounding a plain hole.
Using a head that does not match the fitting can leave poor contact, distort the fitting or prevent moving parts from operating correctly. The screw may feel tight while the joint itself remains badly seated.
When to use countersunk screws
A countersunk screw is usually appropriate when the head must finish level with the surrounding surface or sit inside a purpose-made countersunk fitting.
Common examples include:
- butt hinges with countersunk fixing holes
- flush furniture fittings and faceplates
- timber surfaces that must accept another component
- joinery where a projecting head would catch or obstruct
- cosmetic work where the head will be recessed and covered
The conical underside centres within a compatible recess as the screw is tightened. When the head and recess match correctly, the screw can finish neatly without obstructing the surface.
Countersunk heads in timber
Some soft timbers can compress sufficiently for an appropriate countersunk woodscrew to seat without a separately cut recess. This does not mean that every timber or fixing position should be treated in the same way.
A prepared countersink may be useful when:
- the timber is dense
- the screw is close to an edge or end
- the head is relatively large
- the surface must remain especially neat
- a coating, veneer or laminate could lift
- forcing the head flush would require excessive torque
Test the intended screw on an offcut where appearance or tolerances are important.
Double-countersunk woodscrews
Some woodscrews use a double-countersunk head. The precise design and claimed benefit vary by manufacturer, so it should not be treated as a universal standard.
TIMCO states that the double-countersunk design on its Solo range reduces the likelihood of head shear and assists countersinking. The TIMCO Solo 4.0 × 40mm Chipboard & Woodscrew combines this head with a PZ2 recess, 40-degree deep single thread, 25-degree sharp point and zinc and yellow finish.
That description applies to the specified product. It does not remove the need to match the screw to the material, joint and fitting.
Risks when seating countersunk heads
The tapered underside can place pressure on the sides of the recess as the screw is tightened. Problems can arise if the recess is absent, too small or unsuitable for the head.
Possible failures include:
- splitting timber near an edge
- lifting or chipping a decorative surface
- crushing MDF or chipboard beneath the head
- distorting a thin metal fitting
- leaving the head tilted in a plain hole
- driving the head too deeply and weakening its bearing surface
A countersunk screw should not be forced into a plain bracket hole simply because the threaded part fits through it.
When to use pan-head screws
A pan-head screw has a slightly domed upper profile and a comparatively flat underside. It remains visible above the work rather than sinking into it.
Pan heads are commonly useful for attaching surface-mounted fittings with plain holes, including:
- brackets and mending plates
- clips and saddles
- certain furniture fittings
- electrical trunking and compatible accessories
- selected plastic components
- thin sheet material fixed to a supporting substrate
The flatter underside can bear directly against the fitting instead of wedging into the hole. This makes the head useful where a flush finish is unnecessary and the hardware provides a suitable flat seating area.
The TIMCO Classic 5.0 × 50mm Multi-Purpose Pan-Head Screw is one example. TIMCO describes it as a fully threaded screw for hardwood, chipboard, MDF, plastic and thin sheet metal. It has a PZ2 recess, 40-degree deep single thread, 25-degree sharp point with a single slash, and a pan head intended to improve clamping.
Its suitability still depends on the joint, material thickness, required pilot hole and installation environment.
Limitations of pan heads
Because a pan head remains proud, it is unsuitable where another component must close, slide or sit directly over the fixing.
A pan head fitted to a countersunk hinge hole may prevent the hinge leaves closing correctly. It can also make poor contact because the underside of the head is resting against the outer rim of a tapered hole rather than a flat surface.
Pan heads can still damage a fitting if overtightened. Thin metal can dish beneath the head, plastic can crack and soft timber or manufactured board can be crushed. A broader contact area does not make uncontrolled tightening safe.
Countersunk and pan heads compared
The main differences are straightforward:
- Finished position: A countersunk head can sit flush in a suitable recess. A pan head remains proud.
- Underside: A countersunk head is tapered. A pan head provides a flatter bearing surface.
- Typical fitting: Countersunk screws suit compatible tapered holes. Pan heads commonly suit plain holes with a flat seating area.
- Surface preparation: A countersunk screw may require a prepared recess. A pan head does not need to sink into the surface.
- Clearance: Countersunk heads suit areas where a projecting head would obstruct movement. Pan heads require space above the fitting.
- Common misuse: Countersunk heads are often forced into plain holes, while pan heads are sometimes used where a flush fitting is required.
These differences concern seating and clamping. They do not show which screw has the greater pull-out, shear or structural capacity.
Match the screw head to the fitting
Inspect the hardware before selecting the screw. Do not judge the hole solely by its diameter.
Countersunk holes
A countersunk hole has a visible tapered recess around its opening. It will generally require the head profile specified by the fitting manufacturer.
Check whether the screw head sits evenly within the recess. A head that is too small may sink too deeply, while one that is too large may remain proud. The screw diameter must also suit the hole and the receiving material.
Plain round holes
A plain hole passes through a fitting without a tapered recess. A pan head, flange head or another design with an appropriate bearing surface may be suitable, depending on the fitting specification.
A countersunk head in a plain hole may contact only the edge of the opening. This can mark or distort thinner hardware and produce an unstable seat.
Slotted or elongated holes
Slots may provide adjustment, accommodate movement or form part of a particular installation system. The head must cover the slot sufficiently while allowing the fitting to function as designed.
A pan head, flanged head or separate washer may be appropriate, but the correct arrangement should come from the fitting manufacturer. Do not assume that every slotted hole accepts the same fastener.
Recessed fittings and plastics
A recessed mounting point is not automatically countersunk. Some fittings have a flat-bottomed recess intended to conceal a pan head, while others provide a tapered seat.
Check the shape carefully. Driving a tapered head into an unsuitable plastic recess can concentrate pressure and cause cracking. Overtightening a pan head can also damage plastic, so neither type should be selected by appearance alone.
Consider the base material separately
Selecting the head is only one part of choosing the screw. Thread form, diameter, length, point, material and finish must also suit the receiving material and environment.
Natural timber
A countersunk woodscrew may produce a neat flush finish in timber, but density, grain direction, screw position and diameter all affect the risk of splitting. Pilot drilling and countersinking may be needed in dense timber, near vulnerable edges or where the finish matters.
A pan head can clamp a compatible bracket against timber, but it should not be expected to disappear into the surface.
MDF and chipboard
Manufactured boards can crush or break away if a countersunk head is driven too deeply. Preparing an appropriate recess and controlling the final torque can reduce surface damage.
Pan heads can be useful for suitable surface-mounted fittings because the head does not need to be buried in the board. However, screw holding still depends on the board condition, thread engagement and correct preparation.
Thin sheet and plastic fittings
Thin materials can distort or crack when a head is overtightened or does not match the hole. A pan head may spread contact over more of the face than a similarly sized countersunk head in a plain hole, but the fitting must still be suitable for that fastener.
Where a thin sheet has a manufactured countersink or dimple, use the fixing specified for that feature. Do not create or enlarge metal countersinks without the correct tooling, material knowledge and installation requirements.
How to prepare a countersink
A countersink should create only enough recess for the selected head to seat correctly.
- Mark the fixing position accurately.
- Drill the required pilot or clearance hole with the work supported.
- Use a suitable countersink bit for the material.
- Keep the drill aligned with the hole.
- Cut gradually rather than trying to reach the final depth immediately.
- Test the screw head against the recess.
- Stop when the intended seating position is achieved.
An oversized recess can remove useful supporting material and allow the head to sink too far. An undersized recess can leave the head proud or encourage overdriving.
On veneers, laminates and decorative boards, use sharp tooling and test on an offcut where possible. The board or surface manufacturer may provide specific drilling instructions that take priority over general guidance.
Driving and final seating
Use the correct driver profile and size. Pozidriv and Phillips recesses can look similar, but they are not interchangeable. The two TIMCO examples above require a PZ2 driver.
Keep the driver aligned with the screw. An angled bit is more likely to slip, damage the recess or seat a countersunk head unevenly.
Apply only enough torque to close the joint and seat the head correctly. A drill driver with an adjustable clutch can provide greater control on delicate fittings. If using an impact driver, avoid continuing impact action after the screw has seated.
Inspect the completed fixing for:
- a gap beneath the fitting
- a head sitting at an angle
- a countersunk head left proud
- a pan head sinking into or distorting the fitting
- crushed timber or board
- cracking around a plastic component
- damage to the driver recess
If the screw continues turning without tightening, stop and inspect the fixing point. Further driving is likely to worsen a stripped hole.
Common selection mistakes
Avoid these recurring errors:
- choosing a screw because its head looks neat without checking the fitting
- assuming every recessed hole is countersunk
- forcing a countersunk screw into a plain bracket hole
- using a pan head where moving parts require a flush surface
- burying a countersunk head excessively
- using a head too small to cover the fitting hole properly
- overtightening thin metal or plastic components
- confusing the head shape with the drive recess
- treating a pan head as proof of heavy-duty performance
- ignoring the screw material and corrosion protection
- substituting a general-purpose screw for the specified structural fixing
Safety and application boundaries
This guidance is intended for general joinery, maintenance and compatible surface-mounted fittings.
Structural timber connections, overhead installations, guarding, safety railings, fire-rated assemblies and other high-consequence applications require the fastener specified by the design or system manufacturer. Do not substitute a screw merely because its head fits the available hole.
Follow the instructions supplied with the screw, fitting, tool and base material. Secure smaller workpieces before drilling or countersinking and wear suitable eye protection against chips and swarf.
Choose by seating, then verify the whole screw
Choose a countersunk screw when the head must sit flush in a compatible tapered recess. Choose a pan head when the screw can remain proud and needs to bear against a suitable flat surface.
Once the head shape is settled, verify the thread, diameter, length, driver, material, finish and intended application. A head that fits correctly is essential, but the complete screw still has to suit the job.
