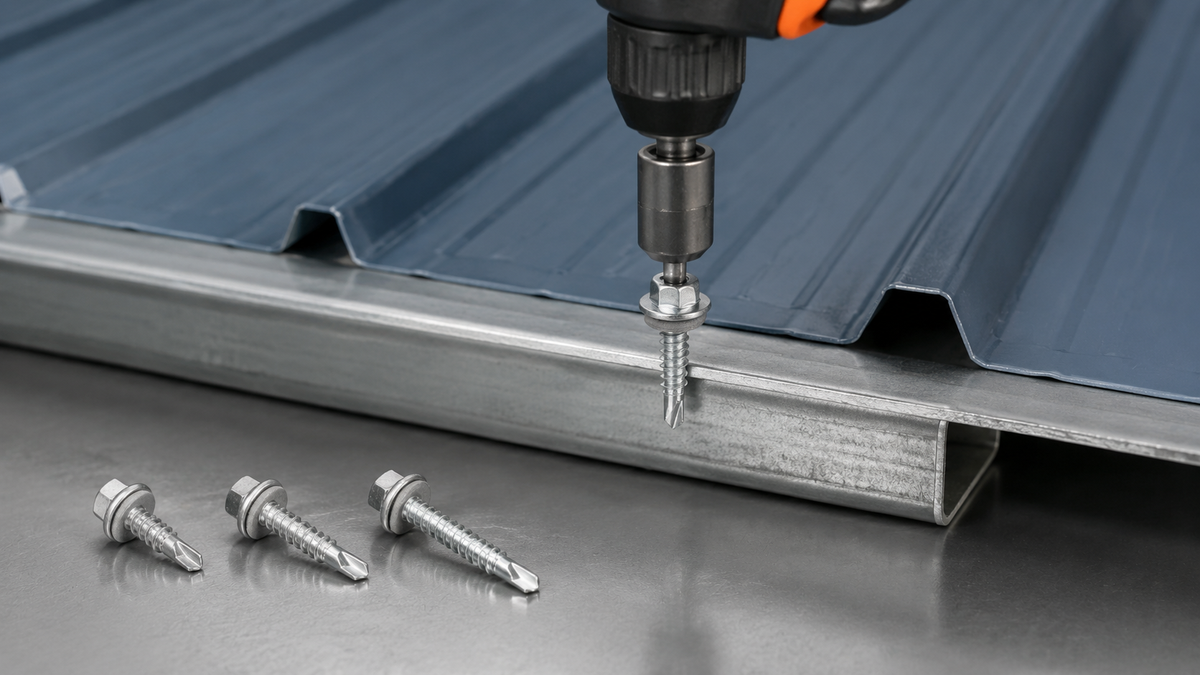

Self-drilling screws for metal can remove the need for a separate pilot-hole operation by drilling through the substrate and forming a mating thread as they are driven. The correct screw still depends on the total metal thickness, head and drive type, required finish and environmental exposure.
An unsuitable screw can result in a stalled or damaged drill point, stripped threads, distorted panels or a poorly seated fixing. Before ordering, check the manufacturer’s stated drilling capacity, screw diameter and length, head style, drive system and protective finish against the actual application.
What makes a self-drilling screw different?
The terms self-drilling and self-tapping are sometimes used interchangeably, but they describe different fastener characteristics.
- Self-tapping screws have a thread designed to form or cut a mating thread in the substrate. Depending on the product, material and application, they may require a prepared pilot hole.
- Self-drilling screws incorporate a fluted drill point ahead of the thread. The point drills through the substrate, after which the thread forms a mating thread in the metal.
A sharp point alone does not make a screw suitable for drilling steel. Check the product specification for a recognised self-drilling point and a manufacturer-stated maximum drilling thickness.
Match the drill point to the metal thickness
Self-drilling points are designed for particular material ranges. The maximum drilling thickness stated by the manufacturer refers to the total steel thickness through which the point must drill.
Measure the complete fixing arrangement rather than relying only on the nominal thickness of the supporting section. This may include an overlapping sheet, bracket or other component positioned above the supporting metal.
Using a screw beyond its stated capacity can cause the point to stall, overheat or become damaged before it penetrates the substrate. A point intended for heavier material may also be inappropriate for thin sheet-to-sheet work.
Sheet-to-sheet stitching screws
Stitching screws are designed to join overlapping metal sheets rather than fasten cladding to heavy steelwork.
The TIMCO 6.3 × 22 mm Hex Stitching Screw has a reduced No. 2 self-drilling point and a manufacturer-stated maximum drilling thickness of 1.6 mm total steel. It also has a hex head, an 8 mm socket size and a fixed 12 mm washer.
Use this type of screw for an application matching its stated sheet-to-sheet purpose. It should not be treated as a general fixing for heavier steel sections.
Light-section screws
Light-section screws are intended for applications such as fastening metal roofing and wall cladding sheets to suitable cold-rolled steel purlins, rails and other light sections.
The TIMCO 5.5 × 19 mm Light Section Hex Screw has a No. 3 self-drilling point and a manufacturer-stated maximum drilling thickness of 5.0 mm total steel. It uses an 8 mm socket and incorporates a fixed 12 mm washer.
The stated 5.0 mm figure is a maximum drilling capacity, not a universal recommendation for every fixing at that thickness. The completed connection must still comply with the requirements of the cladding system or project design.
Heavy-section screws
Heavy-section screws use a longer drill point for penetration into thicker steel.
The TIMCO 5.5 × 32 mm Heavy Section Hex Screw has a No. 5 self-drilling point and a manufacturer-stated maximum drilling thickness of 12.0 mm total steel. It also has an 8 mm hex drive and a fixed 12 mm washer.
It is intended for fastening into hot-rolled steel sections within the manufacturer’s stated drilling capacity, subject to the requirements of the fixing design. Do not interpret the drilling-capacity figure as proof that the screw is suitable for any structural or load-bearing connection.
Framing and wafer-head screws
Wafer-head screws provide a broad, relatively low-profile bearing surface for light metal framing applications.
The TIMCO 8 × 9/16 inch Wafer Head Screw has a Phillips PH2 drive and a manufacturer-stated maximum drilling thickness of 3.0 mm. It is intended for internal applications such as drywall track, ceiling systems and light metal framing.
Its zinc-plated finish should not be assumed suitable for exposed outdoor or persistently damp conditions.
Wing-tip screws for timber to metal
When timber, plywood or another board material is being fixed to a steel subframe, a dedicated timber-to-metal screw may be required.
Wing-tip screws incorporate reaming wings above the drill point. The wings create clearance through the board material before breaking away when they contact the steel, allowing the threaded section to engage with the metal.
Check the manufacturer’s stated board thickness, steel drilling capacity, screw length and application. Do not assume that an ordinary metal-to-metal self-drilling screw will perform the same function.
Check flute length and combined material thickness
The drill point must complete its drilling operation before the threaded section is required to clamp the materials together.
If the thread engages the upper material while the point is still drilling through the supporting steel, the materials can be forced apart or the newly formed thread can be damaged. This can leave a loose or unreliable fixing.
Always check:
- The thickness of the item being attached.
- The combined thickness of every metal layer.
- The manufacturer’s maximum drilling capacity.
- The effective thread length.
- The drill-point length and required rear clearance.
- Whether the point could create a hazard or interfere with anything behind the fixing.
Do not select a screw by overall length alone. A longer screw does not increase the drilling capacity of its point.
Choose the right head and drive type
The head determines how the screw is driven, how it bears against the surface and how the finished fixing sits.
Hexagon washer heads
Hexagon washer heads are commonly used for metal roofing, cladding and general fabrication. They provide positive engagement when used with the correct socket.
The verified TIMCO exterior hex screws covered above use an 8 mm socket. Check every product individually rather than assuming all hex-head screws use the same size.
Pan heads
Pan heads have a rounded top and flat bearing surface. They can suit internal metal assembly and bracket fixing where a non-countersunk finish is acceptable.
Use the exact driver bit specified for the recess. An incorrect or worn bit increases the risk of damaging the head.
Wafer heads
Wafer heads combine a broad bearing surface with a relatively low finished profile. They are commonly used in light metal framing and dry-lining systems.
The head style does not by itself confirm that a screw is suitable for a particular frame thickness or environment. Check the complete specification.
Countersunk heads
Countersunk screws should only be used where the component and application can properly accommodate the head.
Forcing a countersunk head into flat, thin metal sheet can distort the material and reduce the useful bearing area. Where a flush finish is required, use the fixing method specified for the system.
Select the correct diameter and length
Measure the complete fixing stack before choosing the screw length. Include:
- The thickness of the component being attached
- Any washer, spacer or bracket
- The supporting metal thickness
- The drill point and lead-thread clearance required behind the substrate
The screw must provide the thread engagement required by the manufacturer or system designer without creating an avoidable hazard behind the work.
Diameter affects the size of the drilled hole and the potential performance of the fixing, but a larger diameter is not automatically better. It may be unsuitable for thin material, restricted edge distances or narrow fixing positions. Use the diameter specified for the application wherever one is provided.
Use sealing washers correctly
External roofing and wall-cladding screws are commonly supplied with an EPDM sealing washer. The verified TIMCO exterior hex screws referenced in this guide incorporate a fixed 12 mm washer.
The washer must be seated correctly:
- An under-driven screw can leave an incomplete seal.
- An over-driven screw can crush or displace the sealing material, distort the sheet or damage the thread.
- A screw driven at an angle may prevent the washer from making even contact with the surface.
Drive the fixing square to the sheet and stop when the washer is seated in accordance with the manufacturer’s instructions. Do not apply an invented compression percentage where the manufacturer has not specified one.
A sealing washer does not automatically make every connection watertight. The screw, washer, sheet profile, fixing position and installation method must work together as an approved system.
Consider the finish and environment
The appropriate finish depends on moisture exposure, atmospheric conditions and the materials being joined.
Bright zinc-plated screws
Bright zinc-plated screws are generally intended for dry internal applications where the product specification permits. They should not be assumed suitable for exposed outdoor or persistently damp conditions.
Exterior organic coatings
TIMCO exterior metal-construction screws with a Silver Organic finish state 500 hours of salt-spray test resistance.
This is a comparative laboratory test result. It is not a guaranteed service life and does not establish suitability for every coastal, industrial or persistently wet environment.
Bi-metal screws
TIMCO bi-metal ranges combine an A2-304 stainless-steel body with a hardened carbon-steel drilling point. The product specification and intended application must still be checked before selection.
Do not assume that every stainless-steel or bi-metal screw is suitable for every coastal, marine, chemical or high-corrosion environment.
Dissimilar metals
Joining dissimilar metals in the presence of moisture can increase the risk of galvanic corrosion. This may be relevant when fixing aluminium, lead or other non-ferrous components to a steel structure.
Confirm compatibility and any required isolation method with the sheet, substrate and fastener manufacturers. A sealing washer should not be treated as automatic protection against galvanic corrosion.
Install self-drilling screws with control
Self-drilling screws require controlled installation rather than maximum tool speed.
- Use the correct bit or socket.
- Follow the manufacturer’s tool-speed and torque guidance.
- Hold the driver square to the surface.
- Apply steady axial pressure while the point drills.
- Reduce pressure as the head or washer approaches the surface.
- Stop when the fixing is seated correctly.
- Remove metal swarf from finished surfaces.
Excessive speed can overheat or damage the drill point. Poor alignment can cause the point to skate, damage the head or leave a sealing washer sitting unevenly.
If a screw stalls, blunts or becomes visibly damaged, replace it. Do not continue forcing it through the substrate or reuse it in a critical fixing.
Clear swarf promptly from coated roofing and cladding sheets. Metal particles left on the surface can oxidise and cause staining.
Common problems to check
The point spins without drilling
Confirm that the screw’s stated drilling capacity is sufficient for the actual combined metal thickness. Also check the point for damage, the tool setting and whether the driver is being held square to the work.
The drive or head becomes damaged
Fit a new bit or the correct socket and maintain alignment with the screw. Continuing after the tool starts slipping can make later removal difficult.
The sheet dimples or the washer deforms
The screw may have been over-driven or installed at an angle. Check the completed hole and follow the system manufacturer’s remedial guidance rather than assuming the same hole can be reused.
The materials separate while drilling
The drill point may not have completed its cut before the thread engaged the upper material. Recheck the combined thickness, flute length and intended application of the screw.
Safety and structural boundaries
Self-drilling screws are widely used for cladding, sheeting, light framing and general fabrication. However, a screw should never be assumed suitable for structural framing, load-bearing connections, fire-rated systems or safety-critical assemblies without verified design information.
For commercial roofing, wall cladding and structural building-envelope work, follow the project fixing schedule, relevant standards and current trade guidance, including MCRMA Guidance Document GD33 where applicable.
The component manufacturer’s specification and the competent designer’s requirements take priority over general selection guidance.
A practical buying checklist
Before ordering self-drilling screws for metal, confirm:
- The materials being joined
- The combined metal thickness
- The manufacturer’s maximum drilling capacity
- The required point type
- Screw diameter and length
- Head and drive type
- Washer requirements
- Internal or external exposure
- Compatibility between adjacent materials
- Any structural, fire or system-specific specification
- The correct installation tool and bit
A properly matched point, sound substrate and controlled installation are more important than simply choosing the longest or largest screw available.
