Collated nails for nail guns are not interchangeable based on length alone. The nail specification must match the tool magazine, while the fixing itself must suit the timber connection and its service environment.
Before ordering, confirm the collation type and angle, nail length, shank diameter or gauge, head profile and permitted finish. Using an incompatible strip, angle or head style can cause feeding problems, magazine jams or tool damage.
Start With the Nail-Gun Specification
Every collated nailer is designed around a particular consumable format. Check the tool’s data plate, operating manual or manufacturer’s technical information before selecting nails.
Record the following details:
- Collation material and angle
- Nail-length range
- Shank diameter or wire gauge
- Head style
- Accepted shank profiles
- Any restrictions on coatings or materials
Physical appearance is not enough. Two nail strips can look similar while using different angles, gauges or head arrangements. If the consumable specification falls outside the tool manufacturer’s stated range, do not force it into the magazine or modify the strip.
Paper-Collated Framing Nails

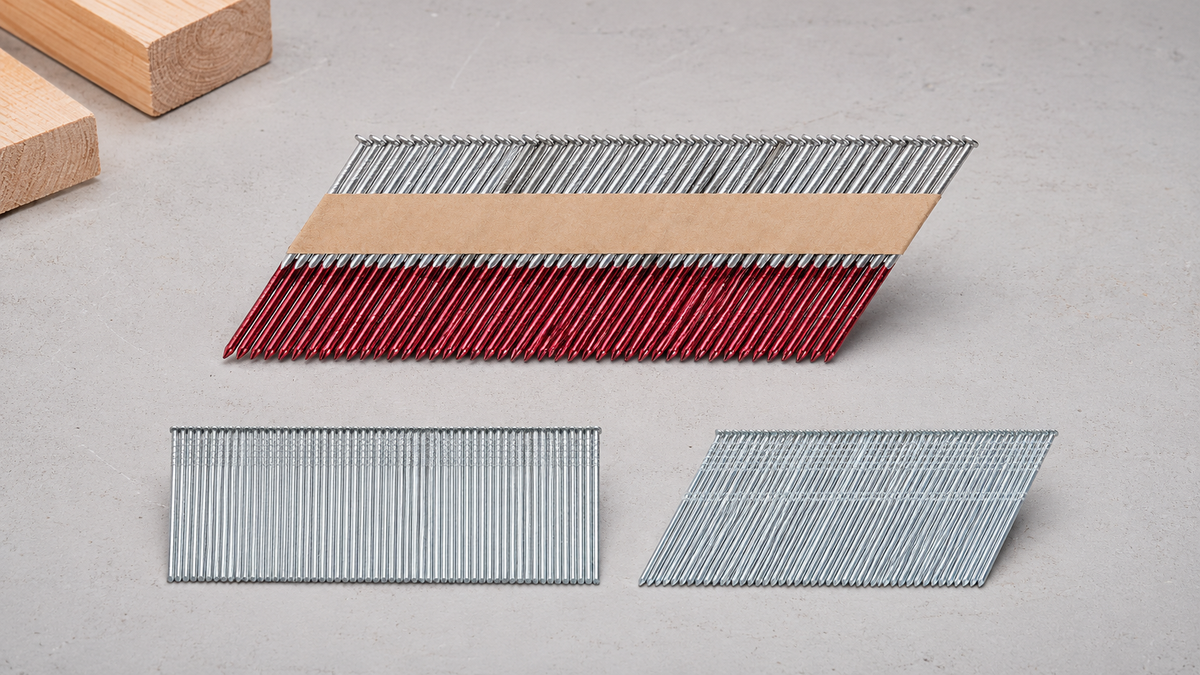

Paper collation holds framing nails together in an angled strip. The collation angle, head profile and nail dimensions must all match the nailer.
For example, the TIMCO FirmaHold 3.1 × 90 mm Plain-Shank Framing Nails and Fuel Cells use 34° paper collation, clipped heads and a plain shank. This does not make them suitable for every framing nailer. The tool must accept the same collation format and dimensions.
Straight and Angled Brad Nails
Straight and angled brads are separate consumable systems.
The TIMCO FirmaHold 16G × 38 mm Straight Brad Nails use straight collation and a compact T head. TIMCO describes them for internal applications such as skirting, architrave and tongue-and-groove work.
The TIMCO FirmaHold 16G × 38 mm Angled Brad Nails use a 20° collation angle. A straight 16-gauge brad and a 20° angled 16-gauge brad are not interchangeable simply because their gauge and length match.
Coil Nailers
Coil nailers use a separate spooled consumable format, commonly joined with wire or plastic. Coil nails cannot be loaded into a strip nailer, and strip nails will not suit a coil magazine.
The accepted coil diameter, collation arrangement, nail dimensions and head style still depend on the exact tool. Bucko’s current verified TIMCO catalogue does not include a collated coil-nail product, so no coil product is recommended here.
Plain Shank or Ring Shank
Plain-shank and ring-shank nails have different driving and withdrawal characteristics.
Ring-shank nails are designed to provide greater resistance to withdrawal than comparable plain-shank nails. The rings engage with the timber fibres and make the nail more resistant to being pulled back out.
The TIMCO FirmaHold 2.8 × 63 mm Ring-Shank Framing Nails and Fuel Cells provide a verified comparison with the longer plain-shank framing product. However, ring shank should not be treated as an automatic upgrade.
The correct shank type must come from the connection design, product information or specified fixing schedule. Do not substitute plain and ring-shank nails solely because their lengths appear suitable.
Choose the Correct Length and Diameter
Nail length must provide sufficient penetration into the receiving timber without breaking through a finished rear face where that would be unacceptable.
The required length depends on:
- The thickness of the component being fixed
- The receiving timber
- The joint design
- The fixing position
- The specified penetration
- Whether the connection is structural or decorative
Shank diameter also affects the connection and must remain within the nailer’s accepted range. A larger diameter is not automatically better because timber thickness, fixing position, splitting risk and the designed connection all matter.
For engineered timber assemblies, roof trusses, floor systems and load-bearing timber frames, use the nail length, diameter, shank type and spacing stated on the project drawings or fixing schedule. Do not make an arbitrary substitution based on a general article.
Match the Finish to the Environment
The nail material or finish must suit the environment, timber and project specification. Bright, galvanised, FirmaGalv, hot-dip galvanised and stainless-steel products should not be treated as interchangeable corrosion categories.
Check the exact TIMCO product description rather than applying one general rule across the range.
Where treated timber, green oak, external exposure, coastal conditions or another potentially corrosive environment is involved, confirm compatibility against:
- The specific nail manufacturer’s data
- The timber-treatment supplier’s guidance
- The project specification
- Any requirements attached to the timber system or warranty
If stainless steel is required, verify whether the application calls for A2 or A4 rather than treating the grades as equivalent.
A Practical Ordering Check
Before adding a product to the basket, compare it with the nailer specification line by line:
- Confirm whether the tool takes a strip or coil.
- Check the exact collation angle.
- Confirm the accepted gauge or shank diameter.
- Check that the nail length falls within the tool’s stated range.
- Match the required head and shank profile.
- Select a finish suitable for the timber and environment.
- Check whether the product includes fuel cells or nails only.
- Confirm the pack quantity against the work required.
Products supplied with fuel cells must still match the nailer. The presence of a fuel cell does not prove compatibility with every cordless gas tool.
Storage, Feeding Problems and Jams
Keep collated nails clean, dry and protected in their original packaging until required. Crushed strips, damaged collation or contamination can interfere with reliable feeding.
If a strip does not load normally, stop and compare the packaging with the tool specification. Do not force the magazine shut or alter the collation.
Repeated jams can result from incompatible nails, damaged strips, incorrect tool settings, poor maintenance or worn components. If a jam, misfeed or damaged strip occurs, stop using the nailer and follow the manufacturer’s clearing procedure for that exact model.
Power nailers discharge fasteners with considerable force. Isolate or remove the applicable power source as instructed before opening the magazine or approaching the nose. Keep hands and other body parts clear of the firing path, and never try to clear a jam by firing another nail.
Follow the nailer manufacturer’s requirements and the site risk assessment for eye, hearing and other personal protective equipment.
When a Specified Fixing Schedule Takes Priority
General product guidance cannot replace a specified fixing schedule.
Structural roof work, timber-frame wall panels, engineered timber products, fire-rated systems and other safety-critical assemblies may require a particular nail diameter, length, head, shank, material and spacing.
Where those requirements apply, follow the drawings, system manufacturer’s instructions and project specification. If the proposed substitution is unclear, obtain confirmation from the responsible designer or competent person before proceeding.
For ordinary framing and second-fix work, most ordering mistakes can be avoided by starting with the nailer manual and checking every consumable detail before purchase.
