A chemical anchor resin guide starts with one rule: the resin is only one part of the fixing system. The base material, hole preparation, fixing diameter, embedment depth, temperature and intended load all affect the result. Chemical resin can provide a practical way to anchor threaded rod, studs and compatible sockets into suitable masonry or concrete, but only when every component is correctly matched.
For routine maintenance and installation work, the useful question is not simply which resin is strongest. It is whether the resin, cartridge, applicator, substrate and fixing element are compatible with the job. Read the current product label and technical information before ordering, particularly where failure could cause injury or significant damage.
What chemical anchor resin does
Chemical anchor resin is a two-component compound supplied in a cartridge. As the components pass through a compatible static mixing nozzle, they combine and begin to cure. The mixed resin is injected into a prepared hole before the specified fixing is inserted while the material remains workable.
Unlike an expansion anchor, a resin fixing does not rely on expanding against the sides of the hole. This can make resin useful where expansion forces are undesirable, although permitted edge distances and spacing must still be taken from the technical data for the exact anchoring system.
The resin bonds around the fixing and against the prepared surface of the drilled hole. Dust, contamination, incorrect dimensions or movement during curing can interrupt that bond. A suitable cartridge cannot compensate for a poorly drilled or inadequately cleaned hole.
Choosing between TIMCO resin types
The TIMCO range available from Bucko includes standard polyester, styrene-free polyester and styrene-free vinylester chemical resins. These are intended for different installation conditions and levels of performance.

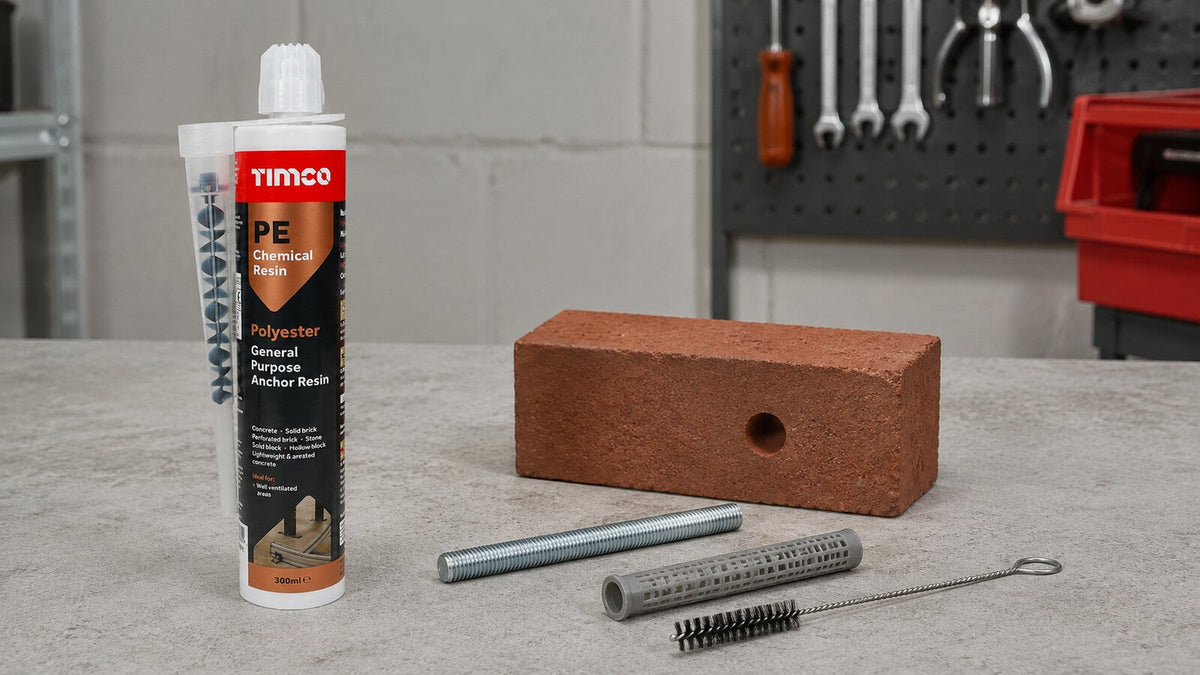

TIMCO PE polyester resin
TIMCO PE310 Chemical Resin is a 300ml two-component polyester resin. A 410ml PE410 version is also available.
TIMCO positions this family as an economical choice for routine, non-safety-critical applications. It is intended for areas that are well ventilated during installation. It should not be selected for structural or safety-critical work merely because it is described as chemical anchor resin.
TIMCO PESF styrene-free polyester resin
TIMCO PESF310 is a 300ml styrene-free polyester resin. It is also positioned for routine, non-safety-critical fixing, but its low-odour formulation makes it more appropriate for enclosed or poorly ventilated environments, subject to the current safety and ventilation instructions.
Styrene-free does not mean that normal chemical-handling precautions can be ignored. Follow the safety data, use the stated protective equipment and provide appropriate ventilation.
TIMCO VESF styrene-free vinylester resin
TIMCO VESF300 Vinylester SF Chemical Resin is a 300ml high-performance, rapid-curing, low-odour vinylester resin. VESF410 provides the same resin family in a 410ml cartridge.
TIMCO positions VESF for suitable safety-critical fixing applications and describes it for enclosed, poorly ventilated, damp and wet environments. It is supported by ETA documentation, but this is not blanket approval for every structural installation.
For safety-critical work, the exact resin, substrate, fixing element, embedment, edge distances, spacing and installation procedure must comply with the applicable ETA, technical data and designed fixing specification.
Solid and hollow base materials
The structure of the base material affects how resin is installed.
Solid masonry and concrete
In a suitable solid substrate, resin is normally injected directly into a correctly drilled and cleaned hole. The fixing is inserted to the specified embedment while the resin remains within its working time.
Concrete, solid brick, stone and blockwork do not all provide the same performance. Do not transfer load figures or drilling dimensions from one material to another without confirmation from the anchoring documentation.
Loose brick faces, weak mortar, cracked masonry, spalled concrete and unidentified repairs need assessment before drilling. Moving a routine fixing may be possible where sound material is available, but structural and safety-related installations require the specified design response.
Hollow and perforated masonry
Hollow brick and blockwork can require a perforated sleeve to retain and distribute the resin. Injecting resin into an unsupported void can waste material and leave insufficient resin around the fixing.
The TIMCO 1585CPS 16 x 85mm Resin Plastic Sleeve is intended to assist fixing into hollow block or brick with TIMCO chemical resins. It suits M8 to M10 studs and has a stated 16mm hole diameter and 90mm hole depth.
TIMCO also offers a 16 x 130mm sleeve for a deeper installation. Its stated hole depth is 135mm and it also suits M8 to M10 studs.
These dimensions belong to the specific sleeve products. Do not use them as general drilling instructions for every hollow-masonry resin fixing.
Match the cartridge to the applicator
Check the cartridge format before selecting an applicator. A tool that accepts an ordinary sealant cartridge may not be suitable for a larger co-axial chemical resin cartridge.
TIMCO’s professional RESINGUN is specifically stated as suitable for 410ml chemical resin cartridges. Before using a 300ml cartridge, check which applicator type is specified for that product rather than relying on the nominal capacity alone.
Each cartridge requires a compatible static mixing nozzle. TIMCO TNOZ10 replacement nozzles are stated to fit its 300ml and 410ml chemical resin cartridges. Spare nozzles are useful when a partly used cartridge will be needed again, as cured resin inside the nozzle cannot be dispensed correctly.
Storage and reuse of an opened cartridge must follow the manufacturer’s instructions. Fit a fresh compatible nozzle before reuse and confirm that the cartridge remains within its stated storage period and condition.
Check the substrate before drilling
Confirm that the substrate is suitable and inspect the drilling position for concealed cables, pipes and other services. Reinforcement may also affect drilling in concrete, particularly on engineered work.
Use the drill diameter, drilling method and hole depth stated for the chosen resin, fixing size and substrate. A worn drill bit can create an oversized or irregular hole, while unsuitable percussion can damage brittle or hollow masonry.
Do not drill a deeper hole simply to leave room for dust. The hole should match the specified dimensions and must then be cleaned using the required method.
Wear suitable eye protection and control masonry dust. The appropriate extraction and respiratory protection depend on the material, equipment and risk assessment. Do not blow drilling dust towards yourself or other people.
Clean the hole properly
Cleaning requirements vary between chemical anchoring systems, so the product instructions take priority. A commonly specified process alternates blowing and brushing:
- Insert a suitable blow-out pump to the required depth and remove loose debris.
- Brush the full hole depth using a correctly sized hole-cleaning brush.
- Blow the loosened material out again.
- Repeat the sequence for the number of cycles stated by the manufacturer.
TIMCO offers a manual blow-out pump and hole-cleaning brushes for stated hole diameters including 13mm, 15mm and 22mm. The brush should be selected for the actual drilled hole and anchoring instructions.
A quick puff at the hole entrance or an improvised paintbrush is not an adequate substitute for the specified cleaning equipment. Also check whether the chosen resin permits installation in dry, damp or wet holes. These conditions are not interchangeable across every product.
Applying the resin
Fit a clean mixing nozzle and load the cartridge into the correct applicator. Dispense the initial material away from the fixing hole until the mixture has the uniform appearance required by the product instructions. The first material leaving a new nozzle may not be properly mixed.
For a solid substrate, insert the nozzle towards the back of the prepared hole. Dispense while withdrawing it steadily so the resin fills from the back without trapping large air pockets. Use the fill quantity stated for the fixing rather than applying a standard fraction to every hole.
For hollow masonry, fit the specified sleeve first and follow the sleeve and resin instructions for filling it.
Insert the clean, compatible fixing with a controlled twisting movement until it reaches the marked embedment. Do not use an oily, dirty or heavily corroded rod. A small amount of resin may emerge at the surface, but appearance alone does not confirm that the anchor has been installed correctly.
Remove fresh excess where instructed and leave the fixing undisturbed. Do not tighten, adjust or load it while the resin is curing.
Working time and loading time
Working time and minimum loading time describe different stages.
Working time is the period available to dispense the mixed resin and position the fixing before the material begins to set. Minimum loading time is the required wait before the installed anchor can accept the permitted load or tightening operation.
Both can change substantially with the temperature of the base material. Warmer conditions may shorten the working period, while colder masonry can extend the required loading time.
Use the temperature table for the exact resin. Do not rely on a curing time remembered from another cartridge, product family or season.
Common installation mistakes
Frequent problems include:
- Selecting resin by price without checking whether the work is safety-critical.
- Assuming every masonry material uses the same drilling dimensions.
- Leaving drilling dust inside the hole.
- Injecting the initial, incompletely mixed material into the fixing hole.
- Using an applicator that does not match the cartridge.
- Attempting to force resin through a cured or partly blocked nozzle.
- Omitting a required sleeve in hollow masonry.
- Moving the fixing after the working period has expired.
- Tightening or loading the anchor before the stated minimum loading time.
- Applying an assumed torque rather than the specified value.
Over-tightening can damage the fixture, threads or substrate even after the resin has cured. Where a tightening torque is specified, use suitable controlled equipment and follow the fixing documentation.
When specialist design is required
General guidance cannot specify resin anchors for structural steelwork, balustrades, edge-protection systems, balconies, canopies, machinery, overhead loads, façade work, lifting equipment or other safety-critical installations.
These applications can require a designed fixing arrangement covering the substrate, loads, fixing material, embedment, spacing, edge distance, environmental exposure and installation checks. Fire or seismic performance must not be assumed from a general product description.
Use the named system and procedure specified by the responsible engineer, designer or fixing specialist. Do not substitute a different resin or threaded rod because it appears similar.
Practical buying checklist
Before starting, confirm:
- The base material and its condition.
- Whether the application is routine or safety-critical.
- The correct PE, PESF or VESF resin family.
- Cartridge size and compatible applicator.
- Compatible rod, stud or socket.
- Specified drill diameter, hole depth and embedment.
- Blow-out pump and correctly sized cleaning brush.
- Perforated sleeve where required.
- Enough fresh mixing nozzles for planned interruptions.
- Substrate temperature and permitted installation conditions.
- Working time and minimum loading time.
- Any specified tightening torque and inspection requirements.
Chemical anchor resin works as a complete system rather than as a cartridge in isolation. Confirm the substrate, follow the current instructions for the exact product and pause for specialist advice whenever a failed fixing would create more than a straightforward repair.
